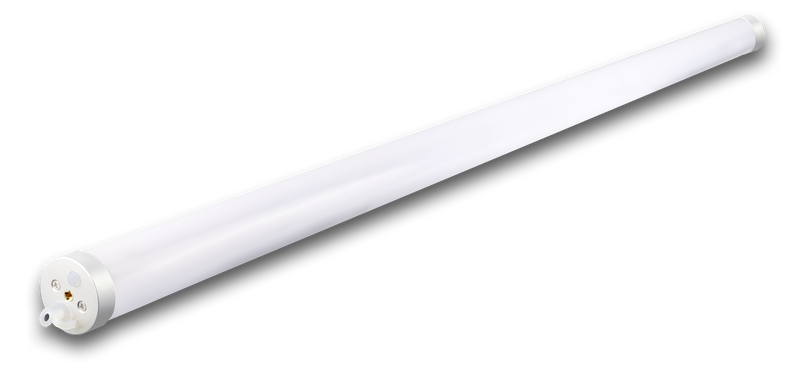

AX1 PIXELTUBE

28W RGBW LEDs – 180° Beam Angle

AX1 is a powerful pixel controllable LED RGBW baton that can be mounted at event and film sites to light up people and objects or create indirect lighting effects. A highly creative device that offers an infinite range of possibilities.

TECHNICAL SPECIFICATIONS

Optical

Colors: RGBW

Total LED power: 28W

Lumens: 955Lm

CRI: up to 88

Strobe:  0-25Hz

Beam Angle: 180˚

Pixels: 16

Electrical

Battery: LG Chem Lithium-ion

Battery Lifetime: 70% after 300 cycles

Battery Runtime: Up to 20 hours

Charging time (nominal): 7 Hours

Input Voltage (charger): 90-264V 47-63Hz

Input Voltage (Light): 48V 0.5A

Control

Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz

Range: 300m | 330 Yards

Wired DMX: not supported

Wireless DMX: CRMX & others, excluding W-DMX G5, City Theatrical

Construction

Housing: Polycarbonate, metal endcap

IP Rating: IP65

Relative humidity: 0-100%

Ambient Temperature: 0-40˚C | 32-104˚F

Weight: 1kg |2.2Lbs

Dimensions: Ø42 x 1035mm | Ø1.6” x H40.7”

AX1 PIXEL TUBE ACCESSORIES

Slide title

Tell your story

UNIQUE ASTERA FEATURES

Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Seamless runtime

Set the length of your event and be sure that your lights won’t run out while still getting the maximum brightness.

TruColor calibration

100% color consistency through any batch. It can hit exact color temperatures and reproduce standard filter gels.

Filming Tools

Scrambled PWM technology to avoid flickering when filming, green/magenta balance to minimize post-production work.

Anti-theft

The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.

DJ feature

Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.

Scheduled stand-by

Switch lights into power-saving standby and schedule them to wake up when the event starts.

Dynamic power-boost

The dynamic power-boost feature enables the light to display the maximum brightness at all times and intensify non-white colors.

Emergency light

Switches automatically to white light and runs of its battery when AC power is cut off.

Astera System

A smart control system where Infrared remote, wireless DMX and app work together to enable big setups that can be set up, monitored and adjusted in a fast and convenient way.

• App control (UHF)

• Wireless DMX (2.4GHz)

• IR Remote Control

SEE THE AX1 PIXEL TUBE IN ACTION
