AX2 Pixel Bar

AX2 PixelBar

LED Bar with built-in battery for stage, events and film lighting

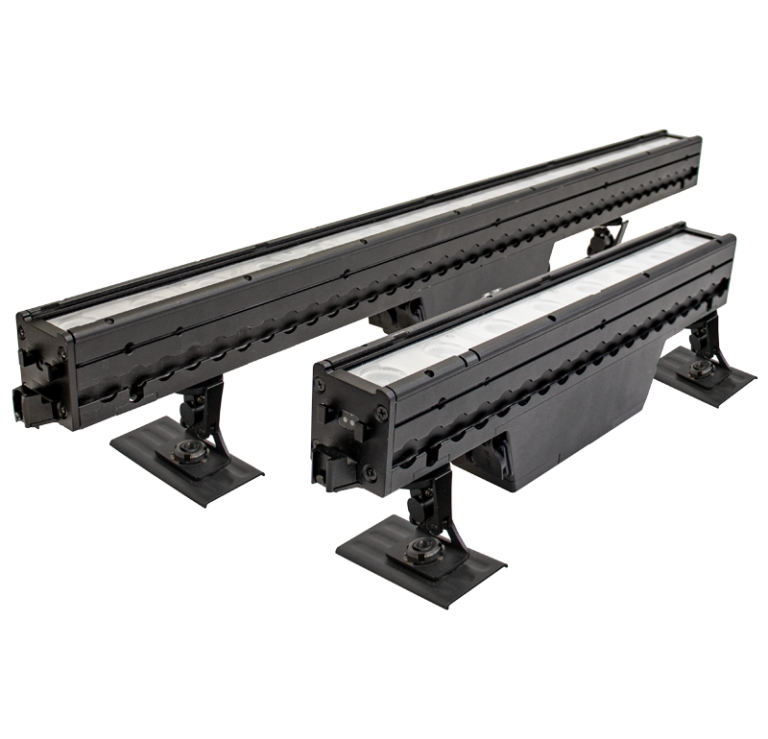

Astera’s Wireless PixelBar is a linear wash fixture with built-in battery pack. Each of its LEDs can be individually addressed and offers ultra-high color rendering, digital color calibration and a native 21° beam. Thanks to its smart stands, hanging bracket, connectable endcaps and the integrated airline track it can be quickly assembled in numerous ways and is suitable for a wide variety of applications such as concert/touring, corporate events, TV etc.

The PixelBar is available in 1m (16 x 10W LEDs) and 50cm (8 x 10W LEDs).

TECHNICAL SPECIFICATIONS

Optical

Colors: Red, Green, Blue, Mint, Amber

Total LED power: 160W / 80W

Power draw: 80W / 40W

TLCI (3200k-6500k)*: ≥96

CRI (3200k-6500k)*: ≥96

Light output – 2700k, 3200k,5500k (100)*: 3600lm, 4460lm, 4530lm

Light output – 2700k, 3200k,5500k (50)*: 1800lm, 2230lm, 2265lm

Strobe: 0-25Hz

Pixels: 16 (8)

(*Typical value)

Electrical

Battery Lifetime: 70% after 300 cycles

Battery Runtime: Up to 20 hours

Charging time (nominal): 5 Hours

Input Voltage: 110 – 240V, 50/60 Hz

Control

Backside Display with HSI control

Infrared

Wireless Frequencies: CRMX 2.4GHz, UHF

Range: 300m | 330 Yards

CRMX Receiver: Built-in

Construction

Housing: Aluminum

IP Rating: IP65

Ambient Temperature: 0-40˚C | 32-104˚F

Weight (50): 4.5 kg (9.9 lbs)

Weight (100): 7.4 kg (16.3 lbs)

Dimensions with hook 50 (mm/inches): 520 x 165 x 65 / 20.5 x 6.5 x2.6

Dimensions with hook 100 (mm/inches): 1020 x 165 x 65 / 40.1 x 6,5 x 2,6

Dimensions without hook 50 (mm/inches): 500 x 165 x 65 / 19.7 x 6.5 x2.6

Dimensions without hook 100(mm/inches): 1000 x 165 x 65 / 39.4 x 6.5 x 2.6

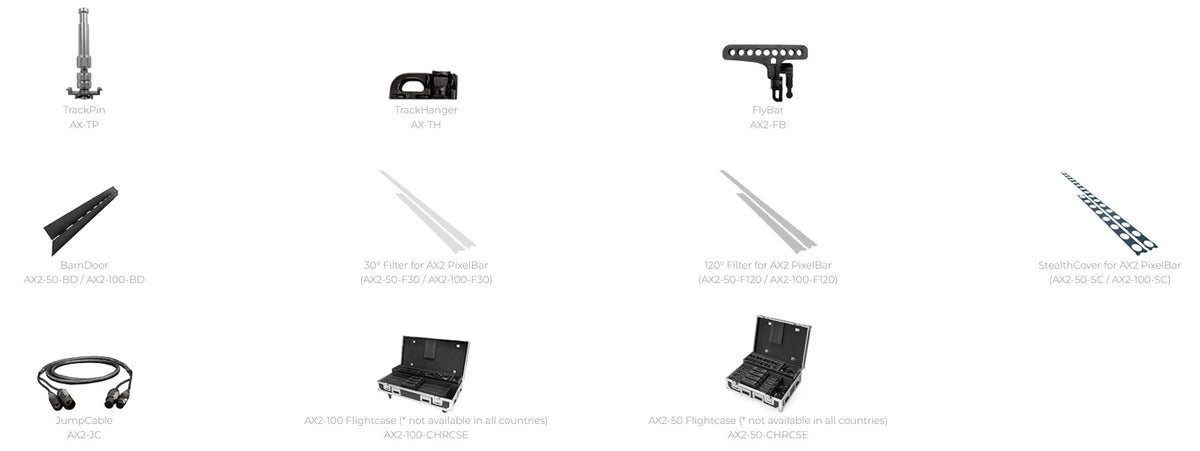

AX2 PIXELBAR ACCESSORIES

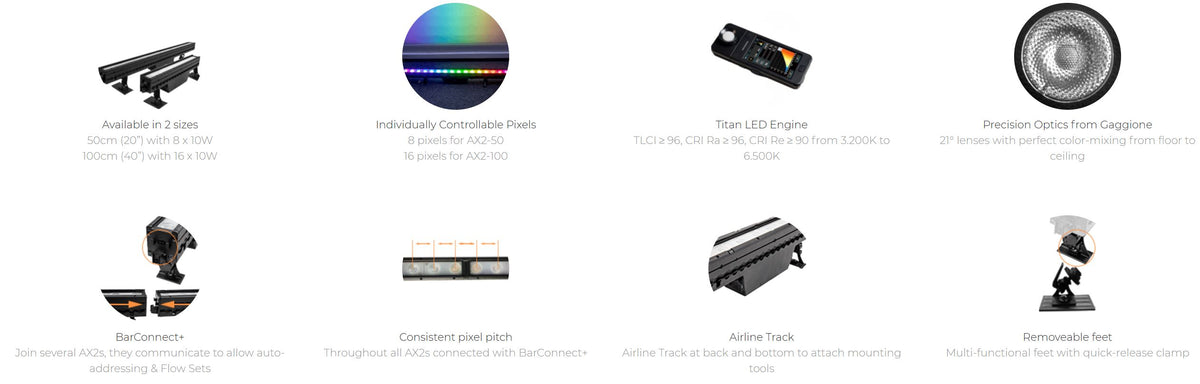

FEATURES UNIQUE TO AX2 PIXELBAR

Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Seamless runtime

Set the length of your event and be sure that your lights won’t run out while still getting the maximum brightness.

TruColor calibration

100% color consistency through any batch. It can hit exact color temperatures and reproduce standard filter gels.

Effects

Quickly build programs out of colors and effects, trigger them or make them match a beat.

Flicker Free

Scrambled PWM technology to avoid flickering when filming.

Green/Magenta Correction

Adjust green/magenta during content creation to reduce postproduction work.

Scheduled Standby

Switch lights into power-saving standby and schedule them to wake up when the production starts.

Dynamic Power Boost

This exclusive feature makes the light able to display the maximum brightness at all times and intensify non-white colors.

Emergency light

Switches to white light when AC power is cut to keep your event safe.

Anti-Theft

The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.

DJ Feature

Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.

Other Features

The AsteraApp is packed with many additional items and new features are frequently added via software update.

Astera System

A smart control system where Infrared remote, wireless DMX and app work together to enable big setups that can be set up, monitored and adjusted in a fast and convenient way.

• App control (UHF)

• Wireless DMX (2.4GHz)

• IR Remote Control

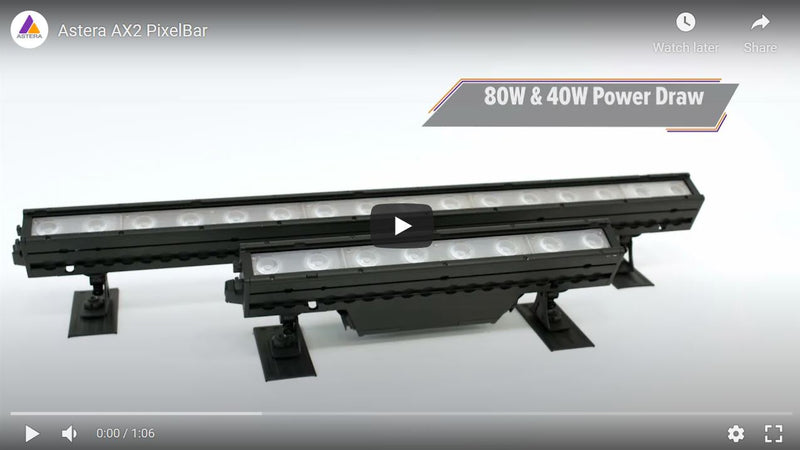

See The AX2 PixelBar in Action
