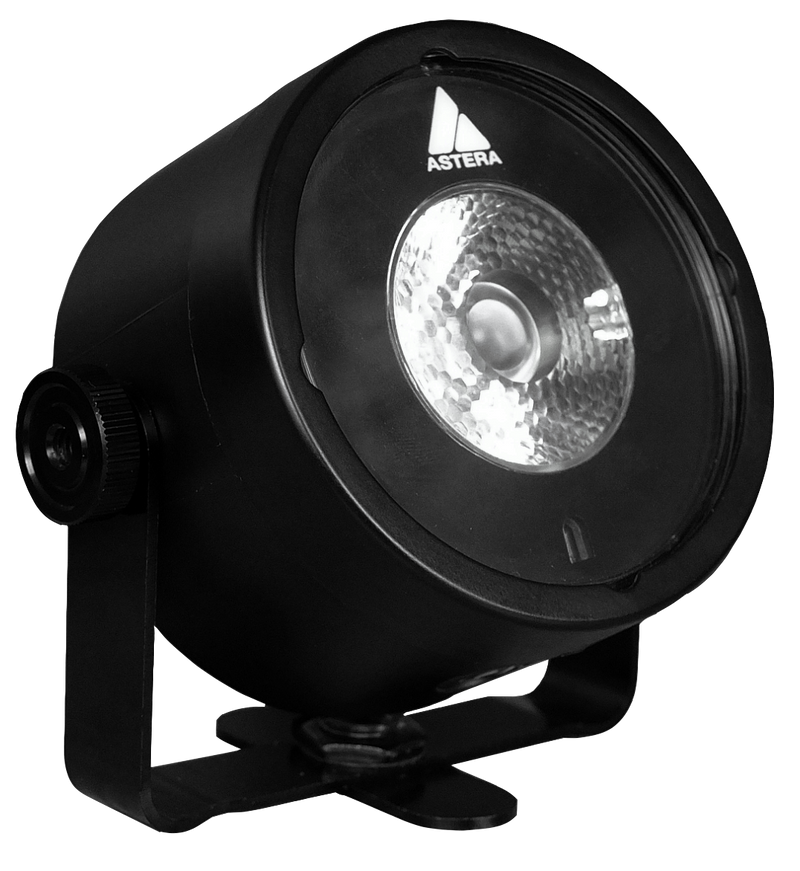

AX3 LightDrop

15W RGBW CREE LED – 13° Beam

The AX3 is a battery operated, easy to use IP65 RGBW puck aimed at stage lighting and corporate events. It can be used as uplight as well as hanging or standing spotlight and inside translucent objects, truss, etc. It is extremely compact and yet offers a high brightness paired with long battery runtime and range.

Slide title

Tell your story

TECHNICAL SPECIFICATIONS

Optical

Colors: RGBW

Total LED power: 15W

Luminous Flux: 350Lm @ 4000K

Strobe:  0-25Hz

Beam Angle: 13 ˚

Pixels: 1

Electrical

Battery: LG Chem Lithium-ion

Battery Lifetime: 70% after 300 cycles

Battery Runtime: Up to 20 hours

Charging time (nominal): 7 Hours

Input Voltage (charger): 90-264V 47-63Hz

Input voltage (light): 5V 2.5A

Control

Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz

Range: 300m | 330 Yards

Wireless DMX: CRMX & others, excluding W-DMX G5, City Theatrical

Construction

Housing: ABS

IP Rating: IP65

Relative humidity: 0-100%

Ambient Temperature: 0-40˚C | 32-104˚F

Weight: 0.679kg |1.4Lbs

Dimensions (with bracket): 120 x 59 x 114 (mm) | 7.4 x 2.3 x 4.4 (inches)

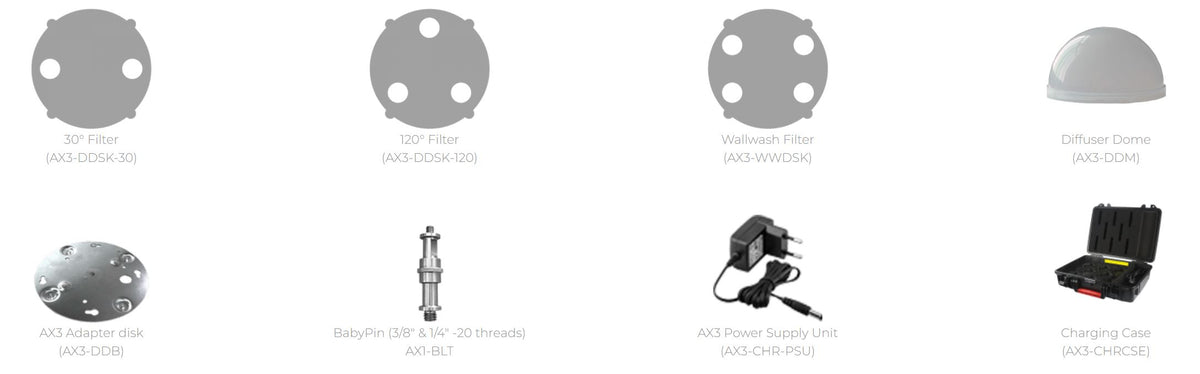

AX3 ACCESSORIES

UNIQUE ASTERA FEATURES

Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Seamless runtime

Set the length of your event and be sure that your lights won’t run out while still getting the maximum brightness.

TruColor calibration

100% color consistency through any batch. It can hit exact color temperatures and reproduce standard filter gels.

Filming Tools

Adjustable PWM frequency to avoid flickering, green/purple balance to minimize post-production work.

Flicker Free

The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.

DJ feature

Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.

Scheduled Standby

Switch lights into power-saving standby and schedule them to wake up when the event starts.

Dynamic Power Boost

The dynamic power-boost feature enables the light to display the maximum brightness at all times and intensify non-white colors.

Emergency light

Switches automatically to white light and runs of its battery when AC power is cut off.

Astera System

A smart control system where Infrared remote, wireless DMX and app work together to enable big setups that can be set up, monitored and adjusted in a fast and convenient way.

• App control (UHF)

• Wireless DMX (2.4GHz)

• IR Remote Control
