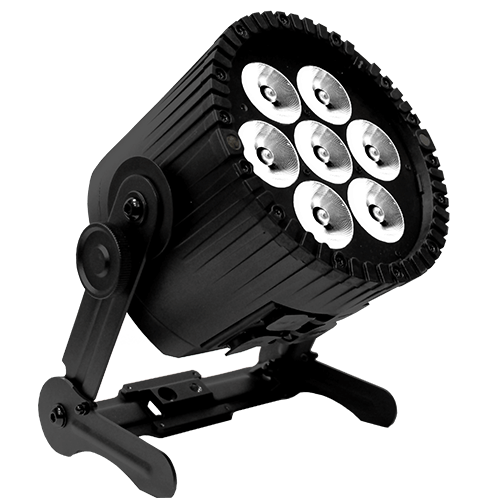

AX9 Power Par

AX9 PowerPAR

105W, Titan LED Engine.

The AX9 utilizes the AX5’s successful 3-in-1 concept which allows it to be used as wireless light and elegant uplight as well as a wired PAR light for longer or bigger installations. This makes it an extremely cost-efficient light and keeps your investment to a minimum.

The AX9 packs extreme brightness in a compact and light housing while still giving you industry-leading colors and white tones thanks to its Titan LED Engine.

TECHNICAL SPECIFICATION

Optical

Order Code: AX9
LED Engine: Titan LED Engine
Colors: RGBMintAmber
Total LED Power: 105W
LED Power Draw: 70W
Light output – 2700k, 3200k,5500k*: 2497lm / 3008lm / 2869lm
Emittance @2m – 2700k, 3200k, 5500k*: 9700 lx / 9900 lx / 9600 lx
CRI(Ra)/TLCI 3200-6500k*: ≥96
Beam Angle: 13°
Strobe: 0 – 25Hz
Pixel: 1

Electrical

Battery Lifetime: 70 % after 300 cycles
Battery Runtime: up to 20 hours
Charging Time (nominal): 5 hours
AC Input: 100-240VAC, 50/60Hz, 2.3A; 2.3A/115VAC ~ 1.1A/230VAC; 110W

Control

Wired DMX: Yes
CRMX Receiver: Built-in
Wireless Frequencies: CRMX 2.4GHz, UHF, Bluetooth
Range (m/yds): 300 / 330 (3/3,3 Bluetooth)

Construction

Housing Material: Aluminum
IP Rating: IP65
Ambient Temperature (°C/°F): 0° – 40° / 32° – 104°
Weight (kg/lbs): 5.66 / 12.5
Dimensions (mm/inches): 175 x 222 x 256 / 6.9 x 8.7 x 10.1

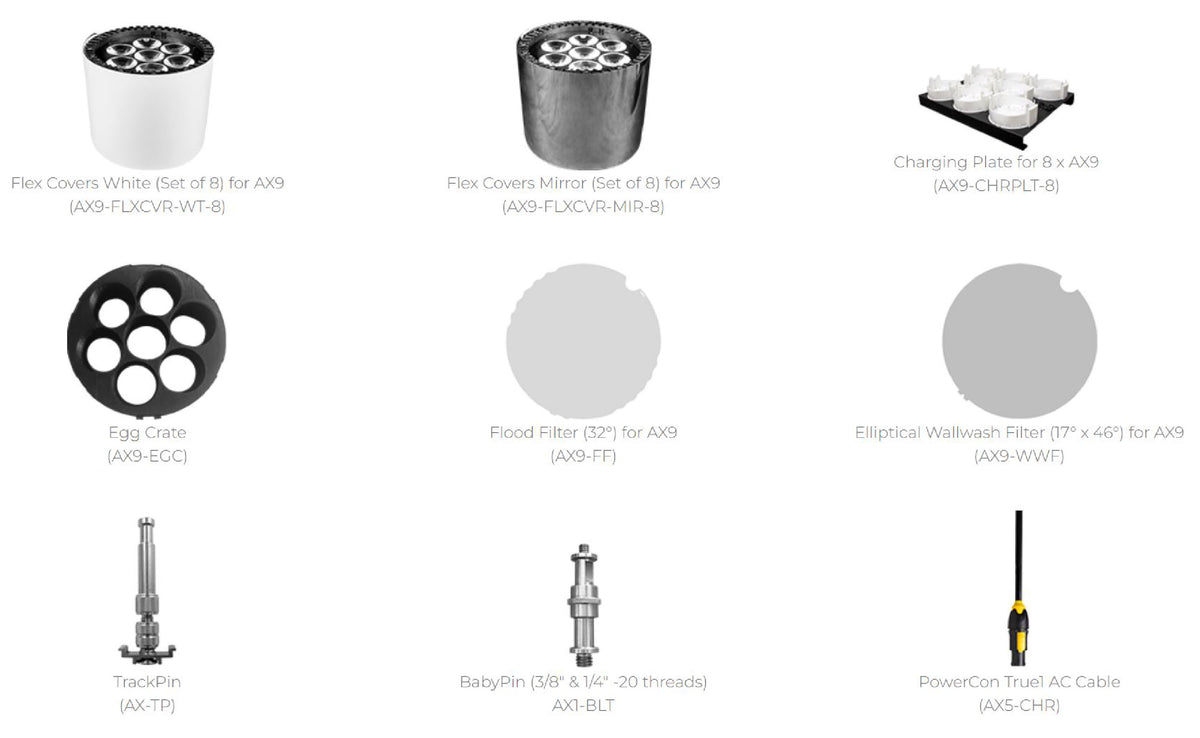

AX9 POWERPAR ACCESSORIES

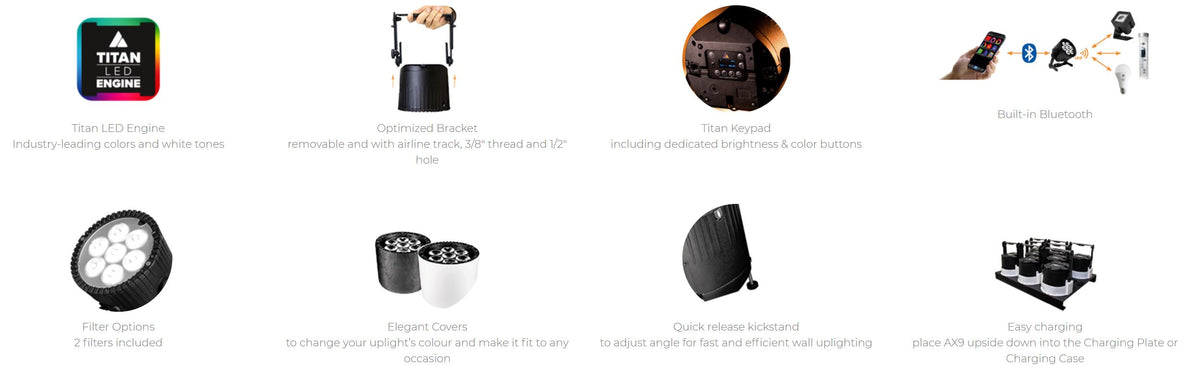

UNIQUE FEATURES OF ASTERA

Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Seamless runtime

Set the length of your event and be sure that your lights won’t run out while still getting the maximum brightness.

TruColor calibration

100% color consistency through any batch. It can hit exact color temperatures and reproduce standard filter gels.

Effects

Quickly build programs out of colors and effects, trigger them or make them match a beat.

Flicker Free

Scrambled PWM technology to avoid flickering when filming.

Green/Magenta Correction

Adjust green/magenta during content creation to reduce postproduction work.

Scheduled stand-by

Switch lights into power-saving standby and schedule them to wake up when the event starts.

Dynamic power-boost

The dynamic power-boost feature enables the light to display the maximum brightness at all times and intensify non-white colors.

Emergency light

Switches automatically to white light and runs of its battery when AC power is cut off.

Astera System

A smart control system where Infrared remote, wireless DMX and app work together to enable big setups that can be set up, monitored and adjusted in a fast and convenient way.

• App control (UHF)

• Wireless DMX (2.4GHz)

• IR Remote Control
