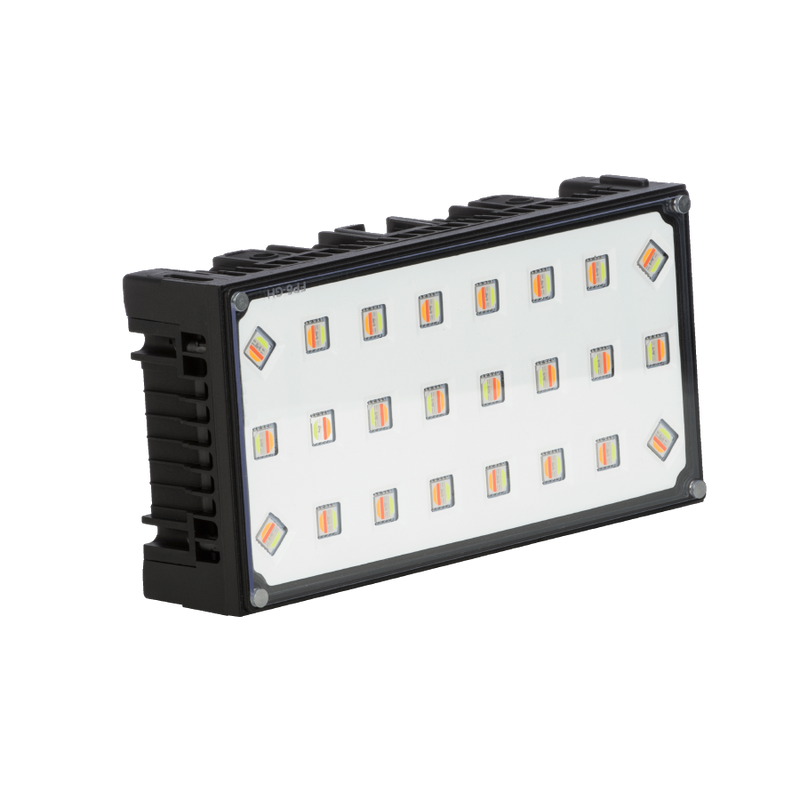

HYDRAPANEL

Titan LED Engine, 25W, Wireless & Wired DMX

Beam shaping with six included light modifiers and a large range of mounting options make HydraPanel more flexible than any other product in its class. The full-spectrum Titan LED Engine generates an impressive 1300 Lumen output while running on battery power for 1:45h. All packed into a solid watertight housing of just 600g weight and 166mm length (1.3lb, 6.5″).

Mount Anywhere, Light Anything!

Slide title

Tell your story

Technical Specifications

Optical

Order Code: FP6
LED Engine: Titan LED Engine
Colors: RGBMintAmber
Total LED Power: 25W
LED Power Draw: 17W
Luminous Flux 3200K: 1102 Lumens
Luminous Flux 4000K: 1287 Lumens
Luminous Flux 5500K: 1298 Lumens
Light Output 3200 K @ 1m: 443 Lux
Light Output 4000 K @ 1m: 512 Lux
Light Output 5500 K @ 1m: 516 Lux
CRI (Ra)/ TLCI 3200- 6500 K*: ≥96
Beam Angle: 110° x 100°
Field Angle: 150° x 145°
Strobe: 0 – 25 Hz
Pixels: 6

(*Typical value)

Control

Wired DMX: Yes Via FP1-PWB/FP3-DTL/PWB2-86
CRMX Receiver: Built-in
BluetoothBridge BTB: Built-in
Wireless Protocols: CRMX, UHF, Bluetooth, WiFi
Wireless Range (CRMX/UHF): Up to 300 m / 330 yds
Bluetooth: Up to 3 m / 3.3 yds”
Infrared Control: Yes
ControlSync: Yes
TouchSlider: Yes

Electrical

Battery Runtime: up to 20 hours
Battery Runtime Max Brightness: 1h 45m
Battery Lifetime: 70 % after 300 cycles
Charging Time (nominal): 3 hours
DC Input: 24VDC – 0.85 A
DC Connector: 5,5mm x 2,1mm

Construction

Housing Material: Polymer & Metal
IP Rating: IP65
Ambient Operating Temperature: 0° – 40 °C / 32 – 104 °F
Weight: 604g / 1.3 lb
Dimensions L x W x D: 166mm x 85mm x 43.5mm / 6.53″ x 3.34″ x 1.71″

HydraPanel Accessories

Slide title

Tell your story

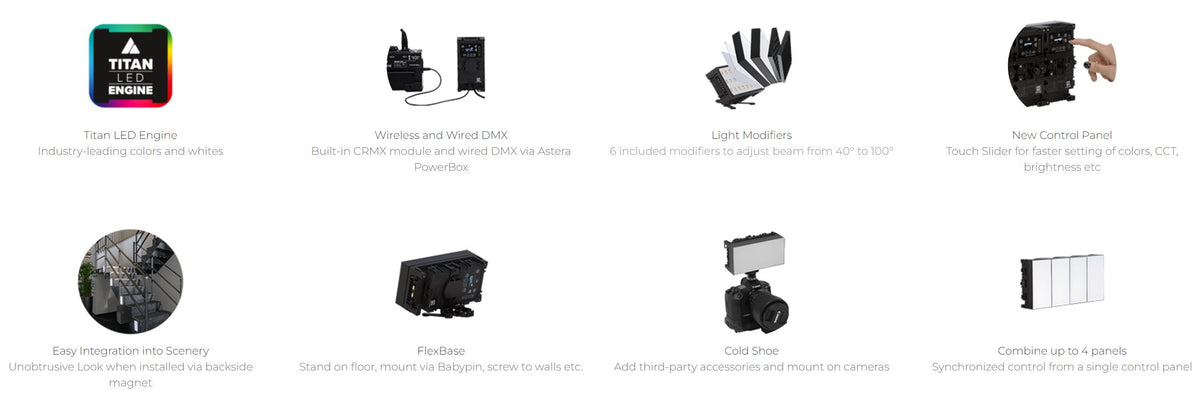

Features Unique to HydraPanel

Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Seamless Runtime

Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.

TruColor Calibration

Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.

Effects

Quickly build programs out of colors and effects, trigger them or make them match a beat.

Flicker Free

Scrambled PWM technology to avoid flickering when filming.

Green/Magenta Correction

Adjust green/magenta during content creation to reduce postproduction work.

Scheduled StandBy

Switch lights into power-saving standby and schedule them to wake up when the production starts.

Dynamic PowerBoost

This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colors.

Emergency Lights

Switches to white light when AC power is cut to keep your event save.

Anti-Theft

The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.

DJ Feature

Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.

Other Features

The AsteraApp is packed with many additional items and new features are frequently added via software update.
