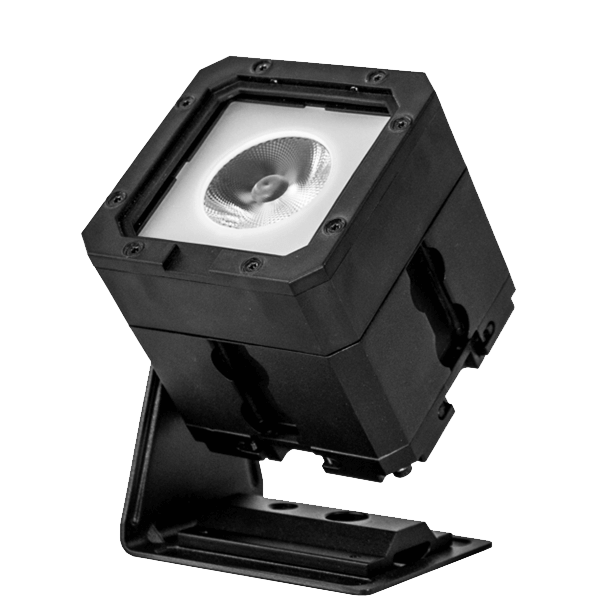

PixelBrick

Titan LED Engine, 15W, CRMX + Wired DMX

Say hello to our next-generation multi-purpose light. In addition to being a battery-powered uplight and PAR with 5 different beam options, multiple PixelBricks can be connected to form clusters and shapes. With about 10cm edge length and 1kg weight, it is small and lightweight while still featuring a powerful output of high-quality light. The PixelBrick can be used for many stage, film and TV applications.

TECHNICAL SPECIFICATIONS

Optical

Order Code: PB15
LED Engine: Titan LED Engine
Colors: RGB Mint Amber
Total LED Power: 15W
Power Draw: 12W
Light output: 2700K, 3200K, 5500K:* 388lm, 450lm, 375lm
CRI(Ra)/TLCI 3200-6500K*: ≥96
Beam Angle: 13°
Strobe: 0 – 25Hz
Pixels: 1

*Typical value

Electrical

Battery Lifetime: 70 % after 300 Cycles

Battery Runtime: up to 20 hours

Charging Time (nominal): 4 hrs

Input Voltage: 24VDCInput Current: 0.8A

Input Current: 0.8A

Control

Wired DMX: Yes (via PWB-2-86)
CRMX Receiver: Built-in
Wireless Frequencies: CRMX 2.4GHz, UHF, Bluetooth
Range (m/yds): 300 / 330yds

Construction

Housing: Aluminium
IP Rating: IP65
Ambient Temperature (°C/°F): 0°- 40° / 32°- 104°
Weight (kg/lbs): 1.12 kg / 2.47 lbs
Dimensions (mm/inches): 91 x 91 x 94 / 3.6 x 3.6 x 3.7

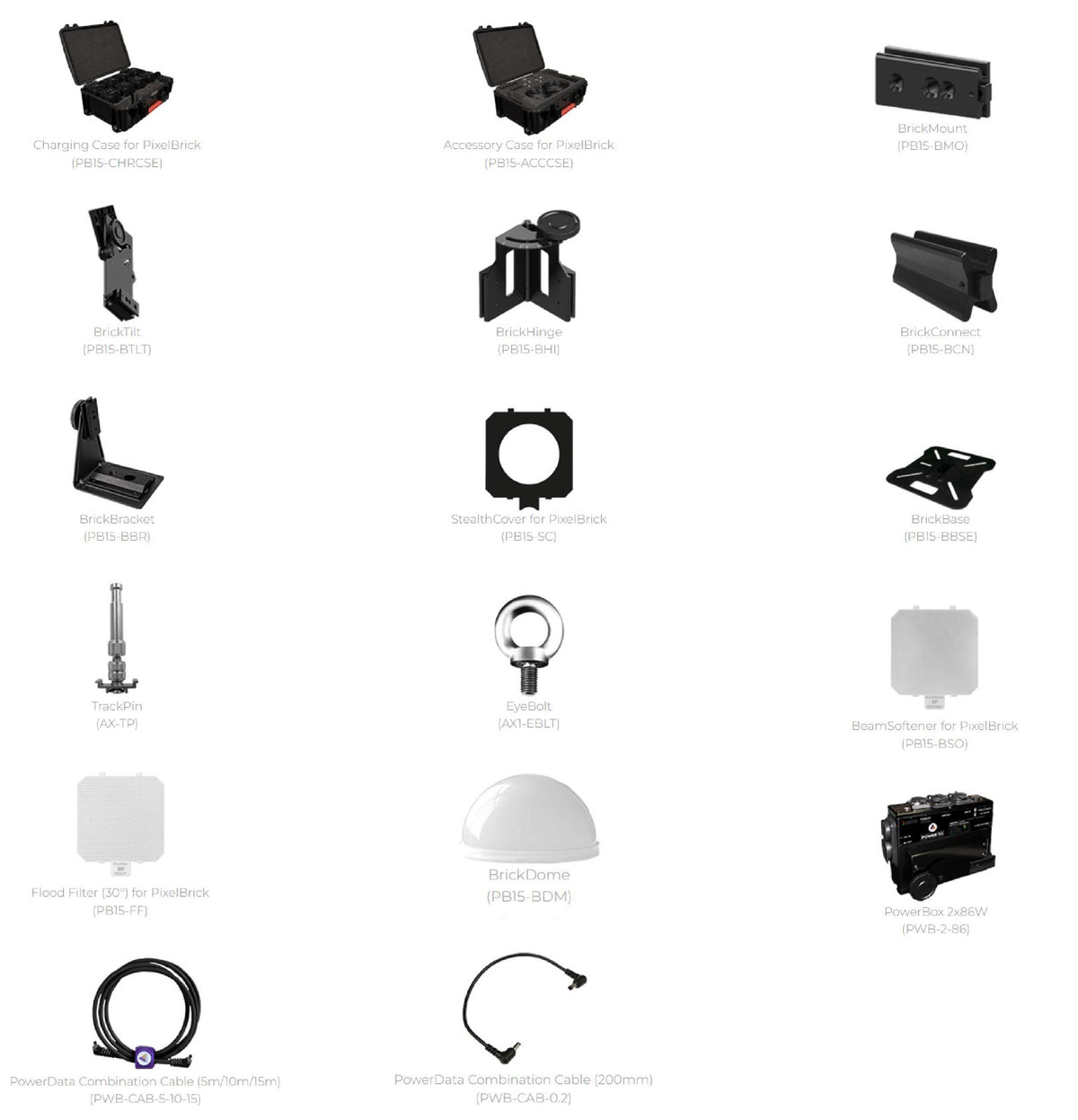

PIXEL BRICK ACCESSORIES

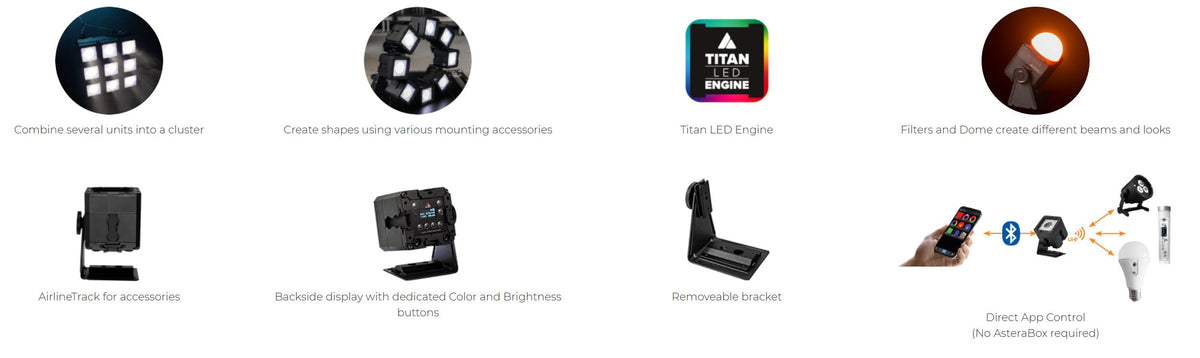

FEATURES UNIQUE TO PIXEL BRICK

Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Seamless runtime

Set the length of your event and be sure that your lights won’t run out while still getting the maximum brightness.

TruColor calibration

100% color consistency through any batch. It can hit exact color temperatures and reproduce standard filter gels.

Effects

Quickly build programs out of colors and effects, trigger them or make them match a beat.

Flicker Free

Scrambled PWM technology to avoid flickering when filming.

Green/Magenta Correction

Adjust green/magenta during content creation to reduce postproduction work.

Scheduled Standby

Switch lights into power-saving standby and schedule them to wake up when the production starts.

Dynamic Power Boost

This exclusive feature makes the light able to display the maximum brightness at all times and intensify non-white colors.

Emergency light

Switches to white light when AC power is cut to keep your event safe.

Anti-Theft

The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.

DJ Feature

Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.

Other Features

The AsteraApp is packed with many additional items and new features are frequently added via software update.

Astera System

A smart control system where Infrared remote, wireless DMX and app work together to enable big setups that can be set up, monitored and adjusted in a fast and convenient way.

• App control (UHF)

• Wireless DMX (2.4GHz)

• IR Remote Control

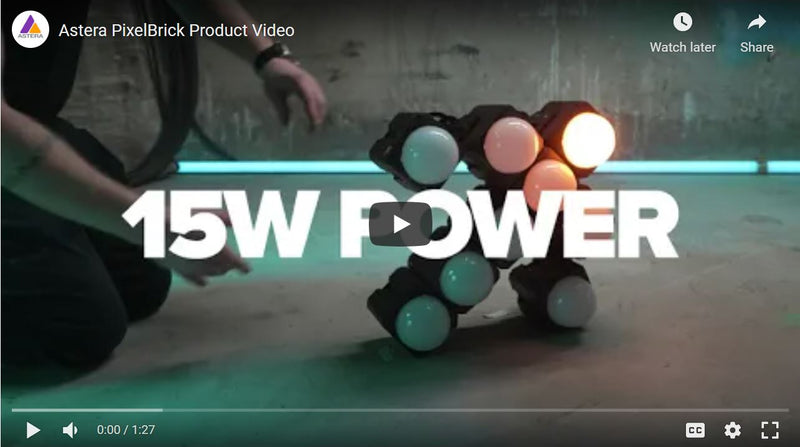

See The PixelBrick in Action
