ORION

Adds a whole new level of interaction and control to your project.

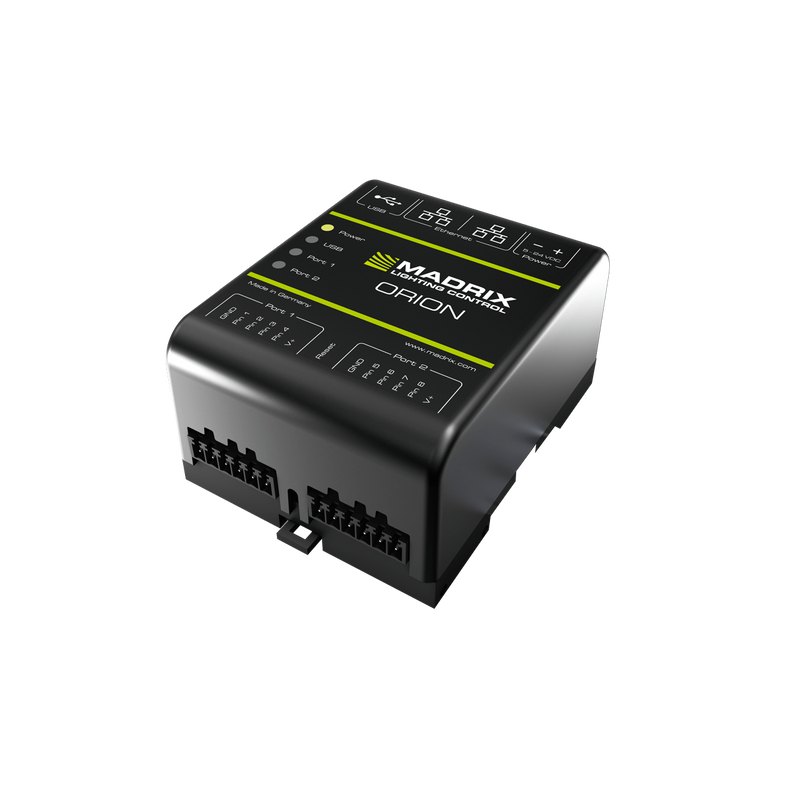

The MADRIX ORION is specifically designed as a general-purpose input device for analog input and Ethernet-based output for remote control and interactivity.

FEATURES

Powerful A/D Converter

Easily convert any analog input signal ranging from 0 V – 12 V into an 8-bit or 16-bit digital DMX output signal. Sample incoming signals instantly and map all inputs individually to up to 8 or 16 DMX channels per device.

8 Versatile Inputs

Directly connect to a wide range of compatible sensors, potentiometers, switches, and triggers. Easily create interactive projects using sensors for light, temperature, PIR, and many more.

Direct Connection

2 main 6-pin ports are available with 4 individual pins each as well as GND and V+. Flexibly supply 5 V – 24 V power over the 2-pin screw terminal.

Designed For DIN Rails Or Walls

Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 9 indicators quickly show the device status with the option to turn them off.

Art-Net / Streaming ACN / USB

Send the output signal as Art-Net or Streaming ACN (E1.31) over long or short distances to any compatible software or hardware controller. In addition, simply connect to MADRIX 5 over USB.

Versatile Output

Different input types allow data to be processed and parameterized differently for the output. Each input can be separately set as Analog-IN, Digital-IN, Counter, and other useful functions.

Daisy-Chain Support

2 Ethernet ports allow for separate network connections as well as linearly daisy-chaining several devices together for better cable management.

Invaluable Features

The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware is upgradable. Access and change specific device settings using the built-in web configuration page.

The MADRIX ORION is specifically designed as a general-purpose input device for analog input and Ethernet-based output for remote control and interactivity.

CONNECTIVITY

• 8x IN (via pluggable screw terminals)

• 2x RJ45 Ethernet ports

• 1x USB port

• 1x Power (via pluggable screw terminal)

Package Contents: 1x MADRIX ORION / 1x Set of screw terminals (2x 6-pin and 1x 2-pin) / 1x USB 2.0 cable (certified) / 2x Wall-mount brackets / 1x Technical manual / quick start guide

TECHNICAL SPECIFICATION

Supply Of Power

DC 5 V – 24 V; over
A) 2-pin, pluggable screw terminal with 500 mA max. load per port when supplying through to the ports, B) 5 V USB, C) Port 1 or Port 2

Power Consumption

< 1.5 W (300 mA) during normal operation (500 mA max. fused)

Network Protocols

Art-Net (I, II, 3, 4), Streaming ACN (sACN / ANSI E1.31)

Input Signals

0 V – 12 V, analog

Ports

2x ports (Via 2x 6-pin pluggable screw terminals)

Input Pins

2x 4 separate pins (8x in total)

Ethernet

2x RJ45, Auto MDI-X, daisy-chain support, 10/100 MBit/s (Compatible with 1 GBit/s)

Ethernet Switch

Lookup Table (ALU) for 1024 unicast MAC addresses

USB

1x port, USB 2.0, type-B female socket

Handling

5 status LEDs (+ 4 network status LEDs)

Case

Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting

Dimensions

90 mm x 70 mm x 46 mm (Length x Width x Height)

Weight

105 g | 120 g incl. screw terminals and wall mounts

Temperature Range

-10 °C to 70 °C (Operating) | -20 °C to 85 °C (Storage)

Relative Humidity

5 % to 80 %, non-condensing (Operating / Storage)

IP Rating

IP20

Certificates

CE, EAC, FCC, RoHS

Warranty

5 years of limited manufacturer's warranty
