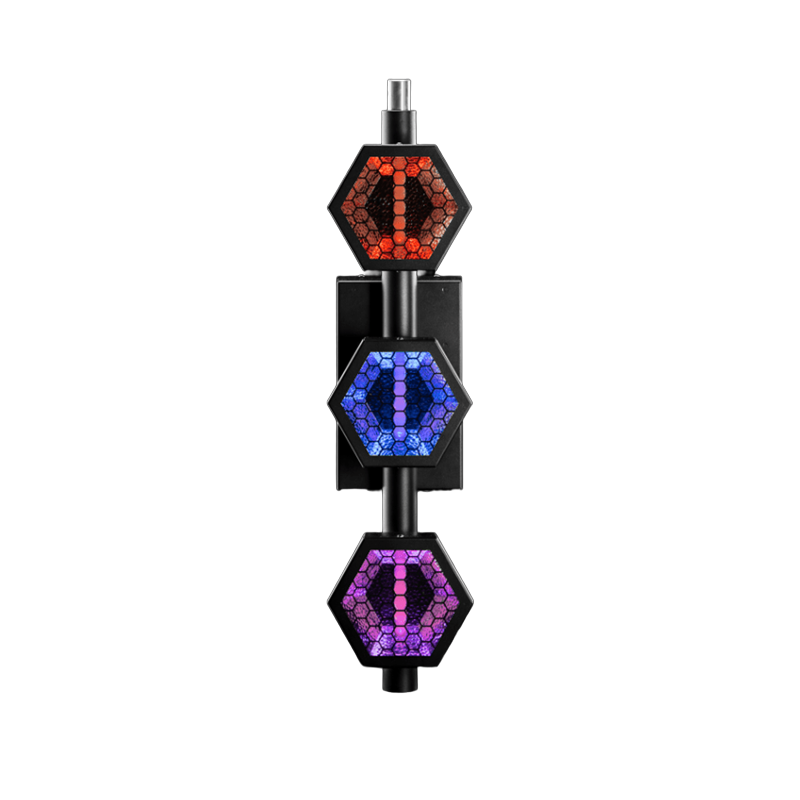

EVO ELEMENT

Super modular stage fixture, fully compatible with the P2 EVO™ – Portman's bestseller. This eye-candy blinder offers full halogen source emulation along with RGBW glow for each pixel. Combine them freely, build stunning structures, and amaze your audience.

Compatible with P2 EVO™

Technical Specifications

Dimensions:
866 x 205 x 189 mm (34.09 x 8.07 x 7.44 in)

Weight:
5.2 kg (11.46 lbs)

Rigging:
• 2 × 12 mm (1/2 in) holes for clamp on back
• Base (not included)
• Hanging adaptor (included) with 12 mm (1/2 in) hole for clamp

Mounting position:
Any

Input voltage:
100-240V 50Hz/60Hz

Power consumption:
max 240W

Power connector:
PowerCon TRUE1 power through

Light sources:
• 3 × haloLED™ (3 × 60W)
• 3 × RGBW glow (3 × 12W)

Color temperature:
• 1600–3200K
• RGBW

CRI:
>90

Optics:
• High reflective hammered reflector
• Opal diffuser

Control connectors:
• 5 PIN XLR (in & out)

Control features:
• 6 DMX modes (9–39 Ch)
• RDM
• Macros
• W-DMX (optional module)

User interface:
• High-contrast LCD display
• Highlighted buttons

IP rating:
IP20

Warranty:
24 months

What Comes With The Evo Element:


• Fixture
• 2m power cord (PowerCon TRUE1 → no plug)
• Hanging adaptor (also for tripod)
• User manual

P2 EVO™ compatibility:
• Height: 2 × EVO ELEMENT™ = 1 × P2 EVO™
• Same pixel sizes
• Same light sources
• Same accessories

Additional accessories:
• E-CONN™ (4-way connector, each arm 30° adjustable)
• P2 EVO base
• P2 EVO height adapter
• W-DMX module
• Male-male connector
• Flight case

See The AMULET in Action

E-CONN

Solid 4-way connector optional accessory

• fits for P2 EVO™ and EVO ELEMENT™
• two adjustable arms (LOCK ON 60° / 90°)
• build triangles, squares, hexagons, octagons...
• build structures fast and easy
