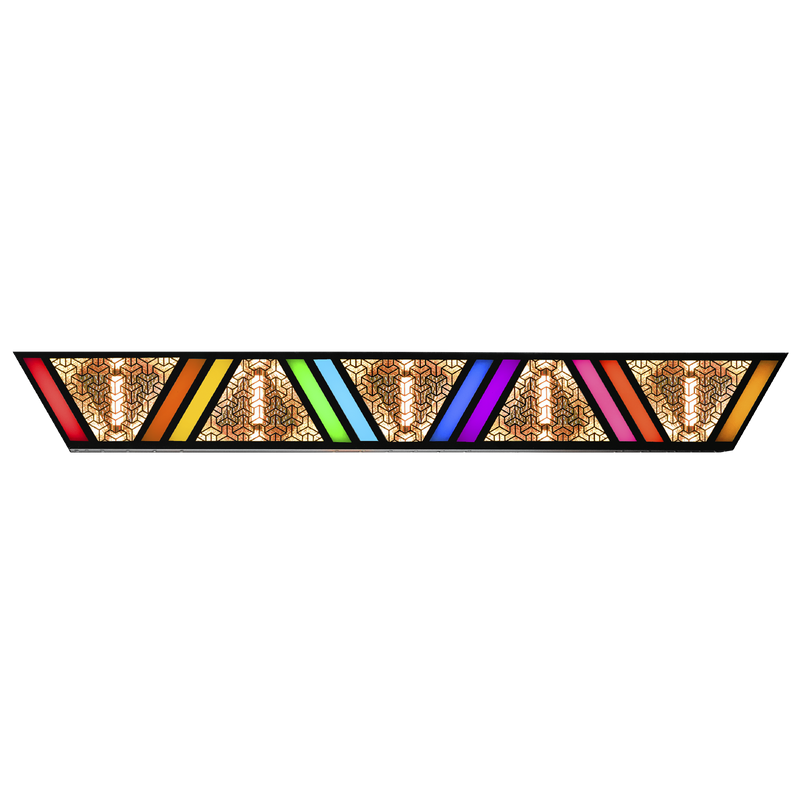

S-TRIBE

The Next Step for Decorative Stage Lighting Based on LEDs.

The S-TRIBE is an entirely new, unique design perfect for building more significant structures, where your creativity is the only limit. This unique fixture has a combination of strong tungsten-emulated main LED sources and RGBW strips that are perfect for creating various lighting designs.

Technical Specifications

Dimensions: 118cm x 15cm x 18cm (46.5in x 5.9in x 7in)

Weight: 8 kg (17.5 lbs)

Rigging:

• 2 x 12 mm (1/2 in) holes for clamp on back.

• Base (included)

• adaptor (included) with 12 mm (1/2 in) hole for clamp and/or base [QJSTM]

Input voltage: 100-240V 50Hz/60Hz

Power consumption: max 280W

Power connector: PowerCon TRUE1 power through

Control connector:

• 5 PIN XLR (both: in & out)
• Art-Net (in)

Light sources:

• 5 x LED dim to warm white
• 10 x RGBW strips

Color temperature:

• 1600-3200K
• RGBW

CRI: >90

Optics:

• High reflective hammered reflector
• Opal diffuser

Control features:

• 6 DMX modes (12-97 Ch)
• Art-Net
• RDM
• macros
• W-DMX (optional module)

User interface:

• High-contrast LCD display
• Highlighted buttons

IP rating: IP20

What Comes With The MANTIS:

• Fixture

• Power cord (PowerCon - no plug)

• Base

• Adaptor for a hook or a base [QJSTM] • User manual

FEATURED GALLERY

See The S-TRIBE in Action
