MADRIX LUNA: The easy-to-use and reliable network node.

The MADRIX LUNA reliably distributes DMX512 data over long or short distances using Ethernet network or USB. Its sync mode makes sure that lighting effects look their best on the LEDs.

FEATURES

Art-Net / Streaming ACN / USB

Art-Net or Streaming ACN data is directly converted to DMX512. Optimize and decentralize cabling to cover any distance to the device using Ethernet network

Any small or large project greatly benefits from dependable data distribution and efficient operation. Use any compatible software or hardware controller. In addition, simply connect to MADRIX 5 over USB.

Easy Configuration

MADRIX LUNA offers powerful features, especially in combination with MADRIX 5. Take full advantage of pixel mapping and voxel mapping. The installation of the device is still quick and easy.

Quality Design

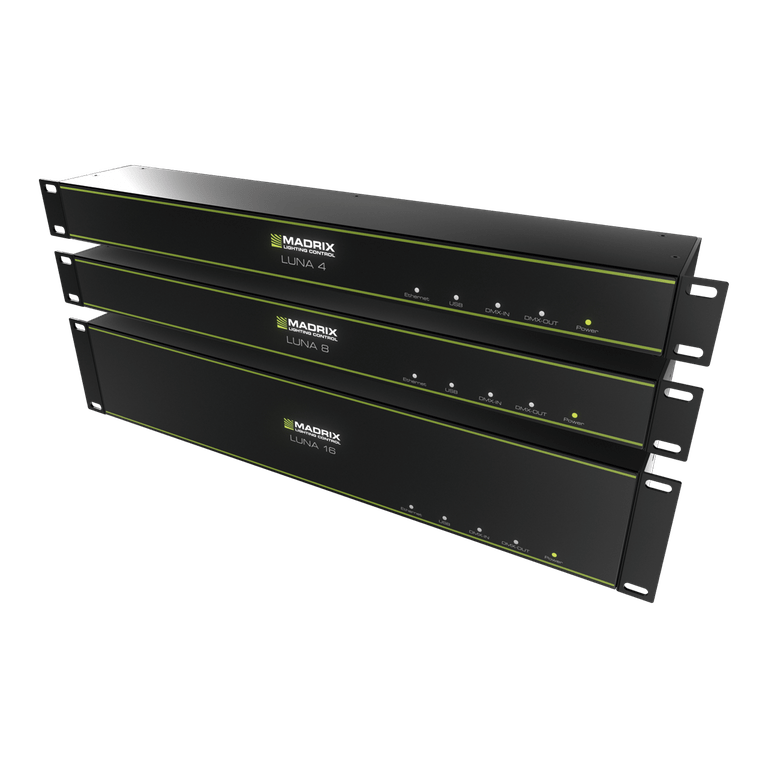

Devices are built 19″ x 1U or 19″ x 2U. They feature a fanless, noiseless, low-energy design, a durable metal case, and NEUTRIK plugs. 2 pre-mounted brackets make rack mounting possible. 5 indicators quickly show the status of a device.

Sync Mode

MADRIX 5 and MADRIX hardware allow you to fully synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions.

3rd-Party Controllers

MADRIX LUNA complies with the official protocol specifications and can be used as a regular node with your other consoles, controllers, or software solutions.

Invaluable Features

The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware is upgradable for future enhancements. Access and change specific device settings using the built-in web configuration page.

4/8/16 DMX-OUT + 1 DMX-IN

4, 8, or 16 XLR ports (5-pin, female) distribute the equal number of DMX universes per unit. 1 XLR port (5-pin, male) can be used for DMX input. Simply use several units at the same time for larger projects.

MADRIX LUNA VIDEO

The MADRIX LUNA reliably distributes DMX512 data over long or short distances using Ethernet network or USB. Its sync mode makes sure that lighting effects look their best on the LEDs.

CONNECTIVITY

• 4x/8x/16x DMX-OUT

• 1x DMX-IN

• 1x RJ45 Ethernet port

• 1x USB port

• 1x Power socket

Package Contents: 1x MADRIX LUNA / 1x Power cord (IEC C13) / 1x USB 2.0 cable (certified) / 2x Rack-mount brackets (already mounted to the device) / 1x Technical manual / quick start guide

TECHNICAL SPECIFICATION

Power Supply

AC 100 V – 240 V, 50-60 Hz, 0.4 A max., IEC C14 inlet

Power Consumption

< 5 W during normal operation

Network Protocols

Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31)

DMX512 (OUT)

4x / 8x / 16x 512 DMX channels output

DMX512 (IN)

1x 512 DMX channels input

Ports (OUT)

5-pin, XLR, female, NEUTRIK

Port (IN)

5-pin, XLR, male, NEUTRIK

Ethernet

1x RJ45, Auto MDI-X, NEUTRIK etherCON, 10/100 MBit/s (Compatible with 1 GBit/s)

USB

1x port, USB 2.0, type-B female socket

Handling

1x RJ45, Auto MDI-X, NEUTRIK etherCON, 10/100 MBit/s (Compatible with 1 GBit/s)

Case

Metal enclosure

Dimensions

19˝ x 1U (LUNA 4 / LUNA 8) | 19˝ x 2U (LUNA 16)

Dimensions (Body Only)

76 mm x 440 mm x 44 mm (Length x Width x Height)

Dimensions (Total)

76 mm x 482.6 mm x 44 mm (Length x Width x Height)

Dimensions (LUNA 16)

76 mm x 482.6 mm x 88 mm (Length x Width x Height)

Weight

1.3 kg (LUNA 4) | 1.4 kg (LUNA 8) | 2.0 kg (LUNA 16)

Temperature Range

-10 °C to 60 °C (Operating) | -20 °C to 70 °C (Storage)

Relative Humidity

20 % to 80 %, non-condensing (Operating / Storage)

IP Rating

IP20

Certificates

CE, EAC, FCC, RoHS
