AURA

The advanced lighting-control recorder and stand-alone playback unit.

The MADRIX AURA is the central stand-alone controller for simple recording and large-scale pixel mapping. It redefines what is possible in a compact control unit with exceptional performance.

FEATURES

Stand-Alone Playback

Independently run the most sophisticated light shows from this energy-efficient playback unit via Art-Net or Streaming ACN. Easily control up to 2, 8, or 32 universes per device.

Central Hub

Simply connect compatible MADRIX hardware interfaces or third-party nodes to provide the correct output for your lighting fixtures.

Master-Slave Synchronization & Scalability

Manage large projects simply by connecting several units. The entire group is automatically synchronized across all DMX universes for flawless and uninterrupted playback.

Live Control

Encased in a non-conductive design for DIN rails or wall mounting, 8 on-device buttons allow for quick playback and recording control. You can also directly adjust the overall speed and intensity.

Live Recording

Record any Art-Net or Streaming ACN network stream onto the inserted memory card. Unlike any other solution, recording a beautiful light show with MADRIX 5 is as easy as pressing record and play.

Time-Controlled Shows

Run scenes automatically with the help of the internal clock as well as the available sunrise and sunset timers.

Web Configuration

Use the built-in web configuration page to access and change specific device settings, such as the important IP address, universes, playlist settings, and much more.

Remote Control

Trigger MADRIX AURA via user-definable HTTP commands and the built-in web server or use Art-Net/sACN. You can even add MADRIX ORION for interactive installations.

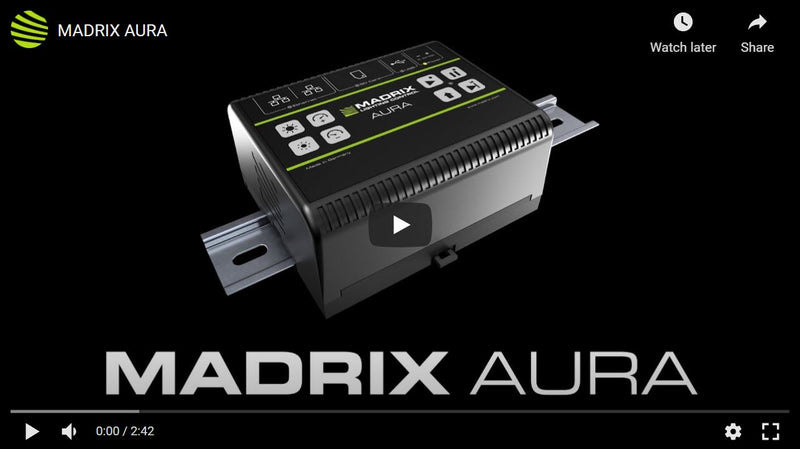

See The Aura in Action.

The MADRIX AURA is the central stand-alone controller for simple recording and large-scale pixel mapping. It redefines what is possible in a compact control unit with exceptional performance.

Connectivity

2x RJ45 Ethernet ports

1x SD-Card slot

1x USB port

1x Power (via pluggable screw terminal)

Package Contents 1x MADRIX AURA / 1x SDHC card (inserted into the device) / 1x Network cable / 1x Pluggable screw terminal (2-pin) / 2x Wall-mount brackets / 1x Technical manual / quick start guide

TECHNICAL SPECIFICATION

Supply Of Power

DC 5 V – 24 V; overA) 2-pin, pluggable screw terminal orB) 5 V USB

Power Consumption

< 1.5 W (300 mA) during normal operation (500 mA max. fused)

Network Protocols

Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31)

RDM Role

Acts on commands and replies to requests with data via ArtRdm (RDM Responder)

Output

2x / 8x / 32x 512 DMX channels output over Ethernet network

Recording Input

2x / 8x / 32x 512 DMX channels input over Ethernet network

Remote-Control Input

8x 512 DMX channels received over Ethernet network

SD-Card Slot

Supports SD, SDHC, and SDXC cards (Tested up to 64 GB)

Ethernet

2x RJ45, Auto MDI-X, daisy-chain support, 10/100/1000 MBit/s

Ethernet Switch

Lookup Table (ALU) for 4096 unicast MAC addresses

USB

1x port, USB 2.0, type-B female socket

Handling

8 control buttons, 6 status LEDs (+ 4 network status LEDs)

Case

Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting

Dimensions

86 mm x 105 mm x 49 mm (Length x Width x Height)

Weight

148 g | 154 g incl. screw terminal, SD card, and wall mounts

Temperature Range

-10 °C to 70 °C (Operating) | -20 °C to 85 °C (Storage)

Relative Humidity

5 % to 80 %, non-condensing (Operating / Storage)

IP Rating

IP20

Certificates

CE, EAC, FCC, RoHS

Warranty

5 years of limited manufacturer's warranty
