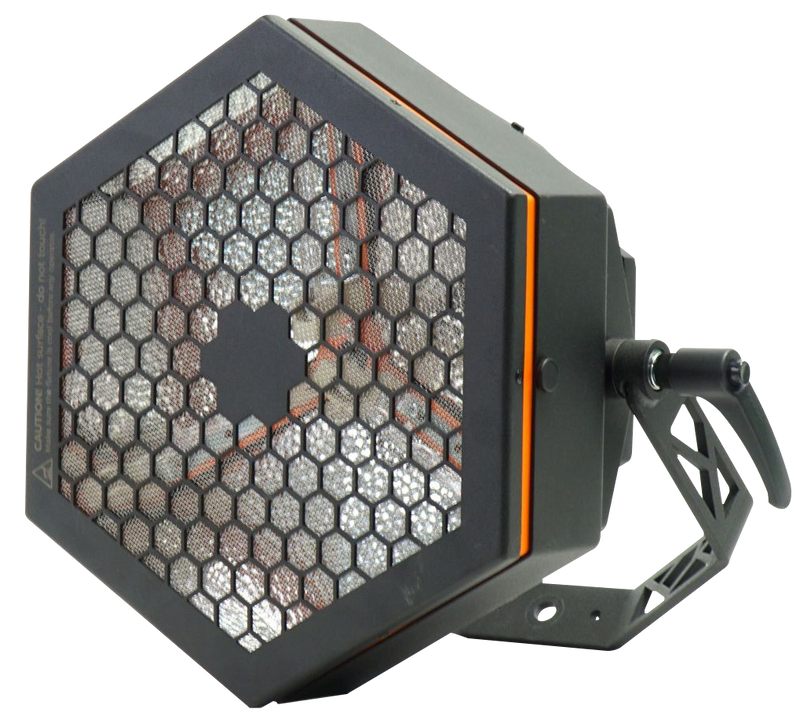

Halogen P3 PIX3L

YOU WILL LOVE THIS TUNGSTEN LOOK

Small but crazy, they said. This three-channel fixture is widely used as part of scenography, as a powerful blinder on all parts of stages and can also be used for lighting artists.

Technical Specifications

Dimensions: 45 x 40 x 20 cm (17.7 x 15.7 x 7.9 in)

Weight: 4,5 kg (9.9 lbs)

Rigging: 12 mm (1/2 in) hole for spigot or clamp

Mounting position: Any

Input voltage: 230V 50Hz/60Hz

Power consumption: max 690W

Power connector: Neutrik PowerCon TRUE1

Control connector: Neutrik 5 PIN XLR (both: in & out)

Light sources: 3 x halogen - R7s 118mm OSRAM Haloline PRO 230V - 230 W (high efficiency)

Color temperature: 1 600 - 2 900K

CRI: 100

Optics: High reflective hammered reflector

Control features: 3 DMX channels - RDM - W-DMX*

User interface: High-contrast LCD display - Highlighted buttons

Other details: silver reflector - gold reflector* - flight cases (8-,12-row) *

Warranty: 24 months

IP rating: IP20

What Comes with the Halogen P3 PIXEL:

Fixture, 2m power cord (PowerCon TRUE1<-> no plug), user manual, 1x spare lamp

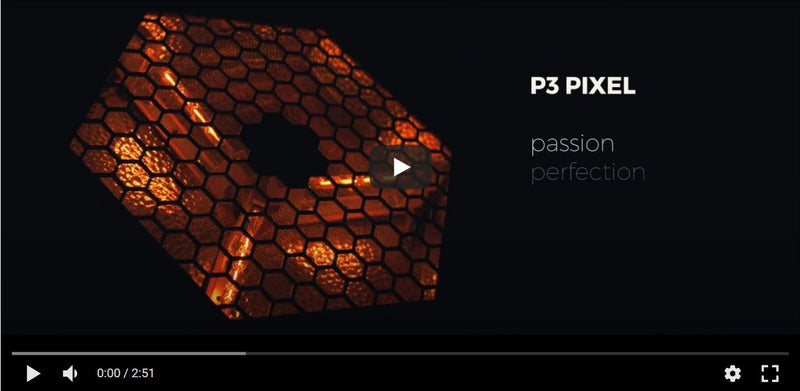

See The P3 PIXEL in Action
