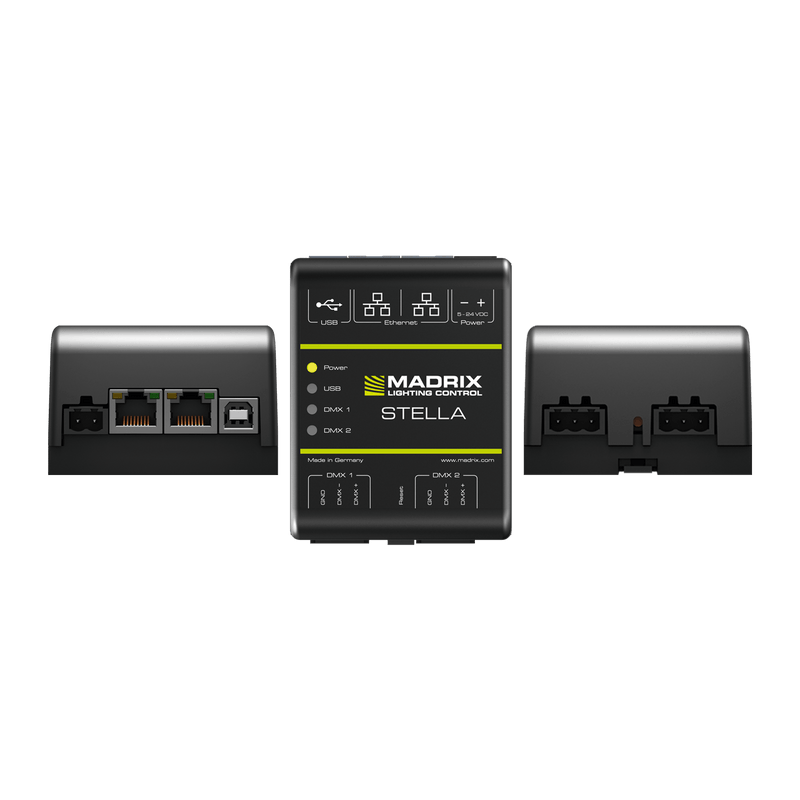

STELLA

The 2-port network node with RDM support for solid-state projects.

The MADRIX STELLA is a dedicated control interface for DMX512 and Art-Net or Streaming ACN that is designed for high quality and practicability in permanent LED installations.

FEATURES

Art-Net / Streaming ACN / USB

Art-Net or Streaming ACN data is directly converted to DMX512. Optimize and decentralize cabling to cover any distance to the device using Ethernet network. In addition, simply connect to MADRIX 5 over USB.

Easy Configuration

MADRIX STELLA offers powerful features. Managing the device is still quick and easy. Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.

3rd-Party Controllers

MADRIX STELLA complies with official protocol specifications and can be used as a regular node with your other consoles, controllers, or software solutions.

RDM & Daisy-Chain Support

2 Ethernet ports allow for separate network connections as well as linearly daisy-chaining several devices together. On top, the device supports the Remote Device Management standard.

Designed For DIN Rails Or Walls

Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 9 indicators quickly show the device status with the option to turn them off.

2 DMX-IN/OUT

Directly connect DMX512 to the two 3-pin screw terminals to distribute 2 DMX universes per unit as input and/or output, eliminating the need for XLR connectors as a result. Simply use several units at the same time for larger projects.

Sync Mode

MADRIX 5 and MADRIX hardware allow you to fully synchronize Art-Net data for all output ports and across multiple devices to get an optimal image on the LEDs without visual interruptions.

Invaluable Features

The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware is upgradable. Access and change specific device settings using the built-in web configuration page.

The MADRIX STELLA is a dedicated control interface for DMX512 and Art-Net or Streaming ACN that is designed for high quality and practicability in permanent LED installations.

CONNECTIVITY

• 2x DMX-IN/OUT (via pluggable screw terminals)

• 2x RJ45 Ethernet ports

• 1x USB port

• 1x Power (via pluggable screw terminal)

Package Contents: 1x MADRIX STELLA / 1x Set of screw terminals (2x 3-pin and 1x 2-pin) / 1x USB 2.0 cable (certified) / 2x Wall-mount brackets / 1x Technical manual / quick start guide

TECHNICAL SPECIFICATION

Supply Of Power

DC 5 V – 24 V; over
A) 2-pin, pluggable screw terminal (12 A max.), B) 5 V USB, C) Port 1 or 2 sourced from LEDs;
6 A max. load per port when supplying through to LEDs

Power Consumption

< 1.5 W (300 mA) during normal operation (500 mA max. fused)

Network Protocols

Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31)

Data Output

8x 512 channels SPI TTL (Maximum output per port: 680 RGB LEDs / 512 RGBW LEDs / 2048 1-channel LEDs)

Supported LEDs

APA101 / APA102 / APA104 / APA106 / GS8206 / GS8207 / GS8208 / GW6201 / See additional LED's at MADRIX website.

Ports

2x ports (Via 2x 4-pin, pluggable screw terminals)

Ethernet

2x RJ45, Auto MDI-X, daisy-chain support, 10/100 MBit/s (Compatible with 1 GBit/s)

Ethernet Switch

Lookup Table (ALU) for 1024 unicast MAC addresses

USB

1x port, USB 2.0, type-B female socket

Handling

5 status LEDs (+ 4 network status LEDs)

Case

Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting

Dimensions

90 mm x 70 mm x 46 mm (Length x Width x Height)

Weight

110 g | 132 g incl. screw terminals and wall mounts

Temperature Range

-10 °C to 70 °C (Operating) | -20 °C to 85 °C (Storage)

Relative Humidity

5 % to 80 %, non-condensing (Operating / Storage)

IP Rating

IP20

Certificates

CE, EAC, FCC, RoHS

Warranty

5 years of limited manufacturer's warranty
