CONNECT+ BASIC

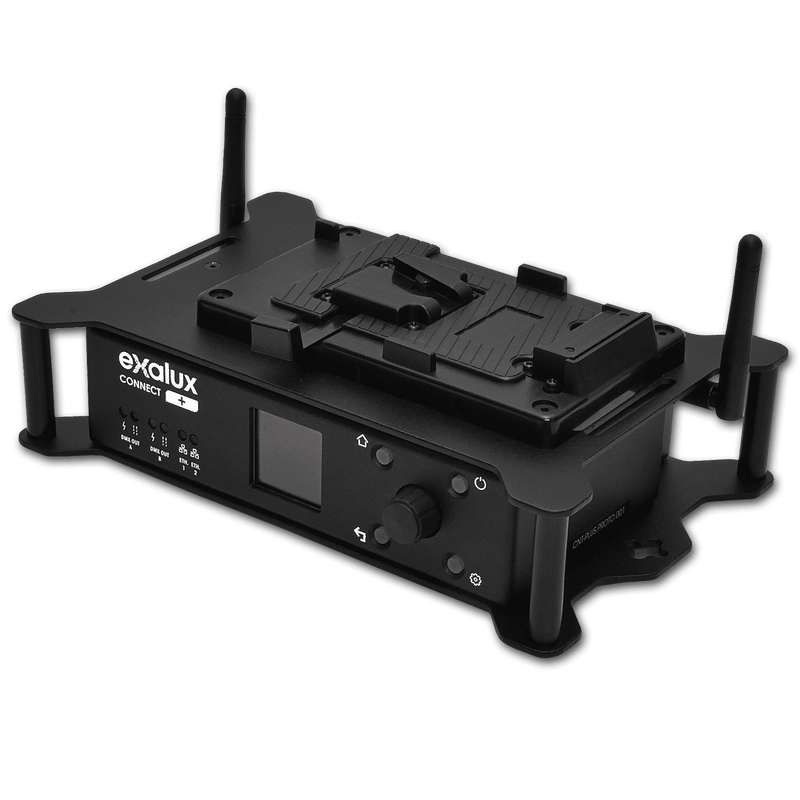

XALUX™ CONNECT+ is a dual band Wi-Fi to DMX gateway that allows wireless lighting control via Art-net compatible App. CONNECT+ is compatible with the most of DMX Apps (BlackOut, DMX Connect+, Luminair).

CONNECT+ features:

• Built-in dual band Wi-Fi MiMo • access point

• Built-in dual universe DMX node

• Built-in DMX recorder

• Built-in Ethernet Switch

• RDM compliant

• Compatible with any DMX Lighting device or controller

• Multiple XLR outputs for wired DMX distribution

• Multiple RJ45 ports for Ethernet distribution

• V-LOCK battery / DC5-24V powered

• Power Over Ethernet (PoE)

• Firmware upgrade through USB port

• Power over DMX (PoD) feature on DMX outputs

• Ready for the future thanks to the SnapLink Extension port

CONNECT+ is certainly the most sophisticated Wi-Fi to DMX gateway on the market!

Technical Specifications

Power Connection: 2.0x5.5MM DC jack

Interface: Color TFT display (/w buttons), LED indicators, Backlit buttons

Power Consumption: ~12W max (20W max with extension)

Housing / Mounting: Aluminum, Black painting, Magnetic rubber feet M10

IP Rating: IP20

Certifications: CE, RoHS

Weight: 890g

WIRELESS INTERFACE

Standard: IEEE 802.11 a/b/g/n

Frequency: Wi-Fi (2.4GHz): 2.412 ~ 2.484 GHz (13 ch) Wi-Fi (5GHz): 5.180 ~ 5.845 GHz (35 ch)

Antenna: Whip hinged antenna, 50Ω, Female RP-SMA (x2)

RF Output / Sensitivity: 17 dBm

Range: Wi-Fi (2.4GHz): ~100mWi-Fi (5GHz): ~50m

DMX INTERFACE

Protocol: DMX512-A

Universe support: 2 (one per output)

DMX frame rate: 0,8-830Hz

End to end latency: < 5ms

DMX Output: 5 pins Female (2)

OPERATING CONDITIONS

Storage T°: Min: -30°C | Max: +80°C

Operating T°: Min: -20°C | Typ : 25°C | Max: +70°C

WIRELESS INTERFACE

Standard: IEEE 802.11 a/b/g/n

Frequency: Wi-Fi (2.4GHz): 2.412 ~ 2.484 GHz (13 ch)Wi-Fi (5GHz) : 5.180 ~ 5.845 GHz (35 ch)

Antenna: Whip hinged antenna, 50Ω, Female RP-SMA (x2)

RF Output / Sensitivity: 17 dBm

Range: Wi-Fi (2.4GHz): ~100mWi-Fi (5GHz): ~50m

USB INTERFACE

Standard: USB 2.0 Hi-Speed

Ports: USB-A Host (1), Charging CDP USB-A 0.5A (2)

Extensions (SnapLink): +5VDC, USB Host (2), 6-position spring-loaded connector

POWER:

DC Jack: 5~28VDC

V-Lock: 14.4-14.8VDC~26VDC

PoE-PD: 48VDC, IEEE 802.3af-2002 Type 1, 13W

ETHERNET INTERFACE

Standard: IEEE 802.3 10/100 Mbps

Ports: RJ45 8P/8C (1), Neutrik EtherCON (1)

EXALUX™ CONNECT + is simply amazing. Everything is possible with CONNECT + such as controlling your lighting fixtures with an iPAD or an Art-Net/sACN console, controlling HUE lamps, controlling NYX lamps.

PRODUCT ADVANTAGES

Dual Band reliable Wi-Fi

EXALUX™CONNECT+ features a high-performance dual band (2.4Ghz+5Ghz) MiMo Wi-Fi Access point. This means you can be sure to have a reliable and responsive connectivity between your IPAD and your CONNECT+.

Switch the 5Ghz Wi-Fi to use your CONNECT+ with a CRMX transmitter such as the TX100N and avoid any interference or use it if the aera really is too noisy.

In addition, EXALUX™ CONNECT+ features a mode that makes it possible to automatically select the clearer frequency band.

Wireless Scalability

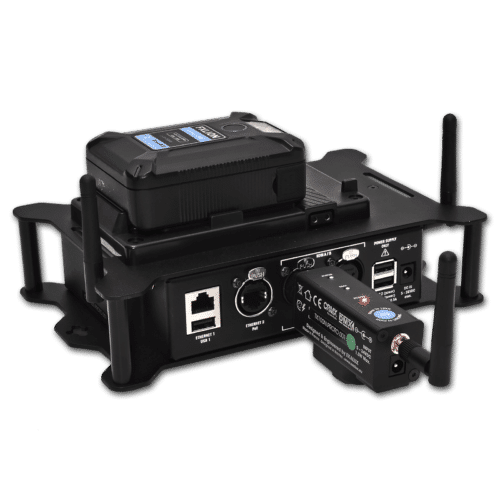

Plug your EXALUX™ CONNECT TX100N wireless DMX transmitters to the XLR 5 outputs to create a wireless DMX link between your iPAD and your lighting fixtures.


The CONNECT TX100N can be connected directly to the CONNECT+ or a few meters away via a DMX cable to get the best connection. Thanks to the PoD, no extra power supply is needed.

2 universes - 2 DMX outputs

EXALUX™ CONNECT+ pushes the limits of DMX.

CONNECT+ makes it possible to manage two DMX universes without adding additional interface, and thus, meet the needs of the most complex fixtures. In the near future, it will become possible to manage more than two DMX universes with the additional Connect interface. CONNECT+ is really clever to control your ASTERA NYX bulbs at your fingertips for example!

Fully compatible with the most popular Apps

With EXALUX™CONNECT+, you can now finally get the full potential of the most popular Apps such as BlackOut and Luminair.

EXALUX™CONNECT+ is fully compatible with all DMX applications based on the Art-Net protocol.

A future-oriented power supply mode.

EXALUX™CONNECT+ can be powered via the Ethernet cable using a PoE injector. This allows the CONNECT+ to be installed in the best place without worrying about power supply constraints.


PoE mode is particularly useful if you use the CONNECT+ as an Art-Net Nod with a live hardware console.

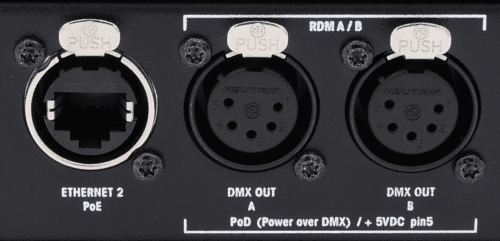

Thanks to PoD (PowerOverDMX) technology, you will be able to power additional DMX devices by connecting them directly to the 5-pin XLR connector.

Philips HUE Ready

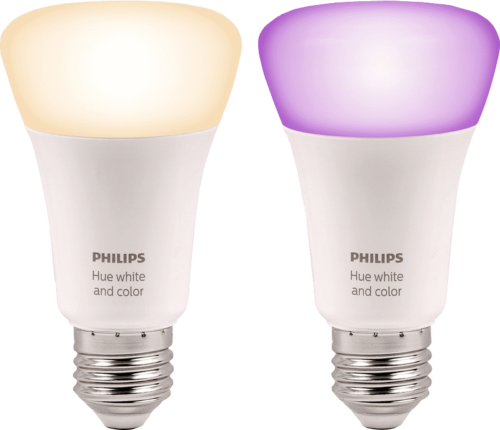

Connect your Philips HUE Bridge to one of the RJ45 ports of the EXALUX™ CONNECT+ and control your Philips HUE bulbs with your iPAD.

(The Philips HUE bridge is not supplied with the CONNECT+)

Upgradable, Backup-able.

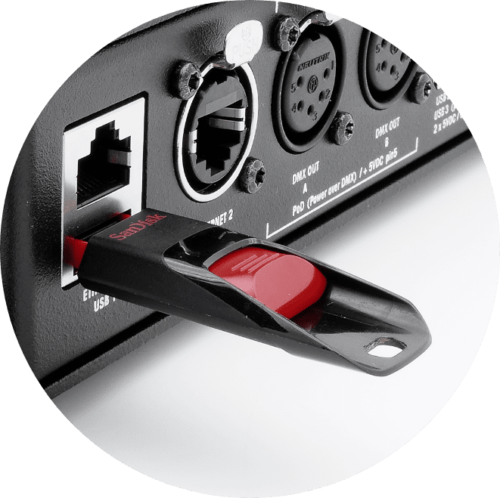

EXALUX™ CONNECT+ firmware can be updated using an USB stick.

You will be able to get the latest improvements without worrying about the obsolescence of the unit when you buy it.

A tiny Recorder on board.

EXALUX™CONNECT+ features a tiny DMX recorder. This makes it possible to record a small sequence from the iPad and play it back later.
