You can immediately rely on a fully operational system out of the box. This bundle offer includes a reliable hardware platform and trusted MADRIX Software for configuration, control, and monitoring of your lighting setup.

The high-valuearcedia standardsoftware license for MADRIX 5, with the option to upgrade to thearcedia extendedsoftware license offering twice the output.

Acorelicense and abig datalicense that make it easy to get started with MADRIX RADAR.
All licenses are immediately ready for use.

To give you planning certainty, the update to MADRIX 6 is free of charge for your MADRIX 5 Arcedia software license once available.

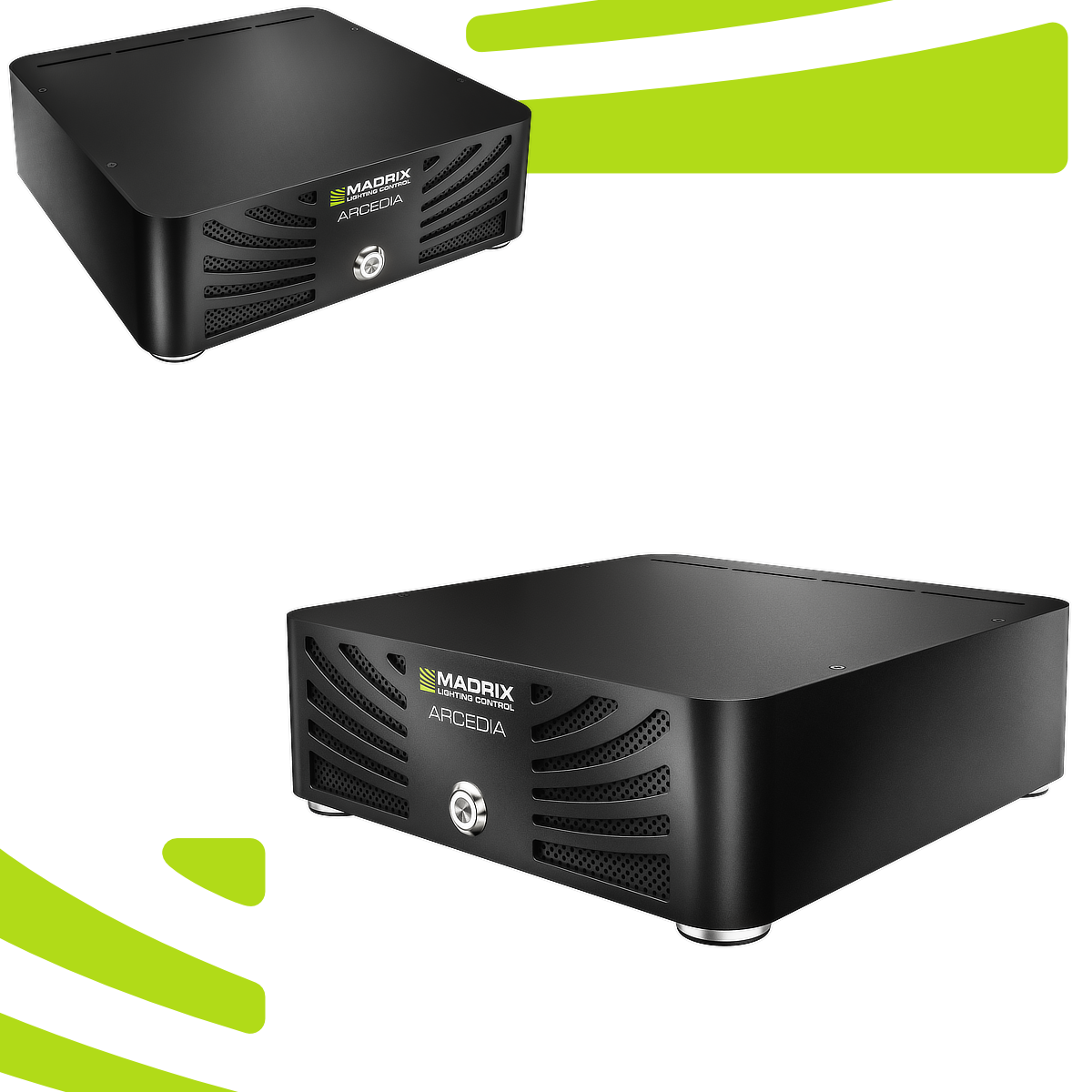

It features workstation graphics, fast disk speeds, even faster memory speeds, and powerful processing power in a compact form factor. Two units fit into 19″ × 1.5U.

• Warranty Extension (Extend from 2 years to 3, 4, or 5 years.)
• Rackmount Bracket (Installation for 19″ racks, holding up to 2 units.)

Take advantage of a full-fledged control system with live audio input for audio-based MADRIX 5 Effects and remote access (possible via VPN, remote-desktop applications, or similar), and more.

External, 180 W, AC 100 – 240 V, 50 – 60 Hz, 9.0 A max.

34 W (Idle) / 95 W (Typical) / 130 W (Max.)

116 (Idle) / 324 (Typical) / 443 (Max.)

ECC RAM (Error-correction code) / 1 TB (NVMe)

4x Mini DisplayPort 1.4a (Via dedicated GPU) / 2x HDMI 2.0b + 1x DisplayPort 1.4b (Via integrated GPU)

4,096 × 2,160 (4x @ 120 Hz)
5,120 × 2,880 (4x @ 60 Hz)
7,680 × 4,320 (2x @ 60 Hz)

8-Bit / 10-Bit / 12-Bit

RJ45, 1x 2.5 GBit/s, 1x 1 GBit/s (Pre-configured with valid IP addresses)

2x 3.5 mm mini jacks (Line-OUT / Microphone)

4x ports, 10 GBit/s (USB 3.2 Gen 2), type-A female socket

Windows 11 Pro (Already installed)

Industrial hardware platform (Certified for 24/7 operation), Active cooling, Bluetooth, WiFi (Designed for remote access, not for output of lighting-control data), Power switch (Illuminated), Kensington security slot

Metal enclosure, 4x Chassis feet (Removable)

218 mm × 218 mm × 73 mm (8.58″ × 8.58″ × 2.87″) (Length × Width × Height) (Incl. feet)
218 mm × 218 mm × 66 mm (8.58″ × 8.58″ × 2.60″) (Length × Width × Height) (Excl. feet)

218 mm (8.58″)

2.1 kg (4.63 lb)

1x Power supply (Plug type F CEE 7/7), 1x Adapter Mini DisplayPort to DisplayPort, 1x VESA mount adapter bracket (From 50 mm × 50 mm to 75 mm × 75 mm / 100 mm × 100 mm), 1x Technical manual,
Not included: Keyboard, mouse, monitor, network cables

+10 °C to +36 °C (+50 °F to +97 °F) (Operating)

10 % to 90 %, non-condensing (Operating / Storage)

IP20

CE, FCC, DIN 15781 (Entertainment Technology – Media Server)

2 years of limited manufacturer's warranty (Extension up to 5 years upon request)
