Connect One Starter Kit

EXALUX™ CONNECT ONE is an Wi-Fi to DMX gateway (converter) which allows you to take control of all DMX fixtures with any tablet or smartphone (iOS or Android).
CONNECT ONE works with most of the Art-Net/DMX based Apps (BlackOut, DMX Connect+, Luminair, Stellar).

CONNECT ONE Wi-Fi to DMX gateway operates up to 12 hours with the small EXALUX™ 8.5Wh Powerbank. Switching from one power supply to another does not disconnect the Wi-Fi connection.

Technical Specifications

Power Connection

Power Connection: AC: Neutrik PowerCon DC: Neutrik XLR 4 pins male

Interface: Frequency selection (switch), Wireless, DMX Signal (LED)

Power Consumption: ~1,0W

Housing / Construction: Aluminum/M10 threaded hole

IP Rating: IP20

Certifications: CE, RoHS

Weight: 355g

RADIO INTERFACE

Standard/technology: Wi-Fi IEEE 802.11g

Frequency: 2.4 ~ 2.4835 GHz

Antenna connector: Omnidirectional, 2.4GHZ 2.0dBi, RP-SMA

RF output: 17.5 dBm

RF sensitivity: -98,5dB

Range: Up to 100m (depending on the transmitter and the environment)

OPERATING CONDITIONS

DC Input Voltage: Min: 4.5VDC | Typ: 5VDC | Max: 24VDC

AC Input Voltage: 85...264V AC

Storage T°: Min: -30°C | Typ : 25°C | Max: +80°C

Operating T°: Min: -20°C | Typ : 25°C | Max: +70°C

DMX INTERFACE

Protocol: DMX512-A

Universe support: 1

DMX frame rate: 0,8-830Hz

End to end latency: < 5ms

DMX Output: Neutrik XLR 5 pins Male

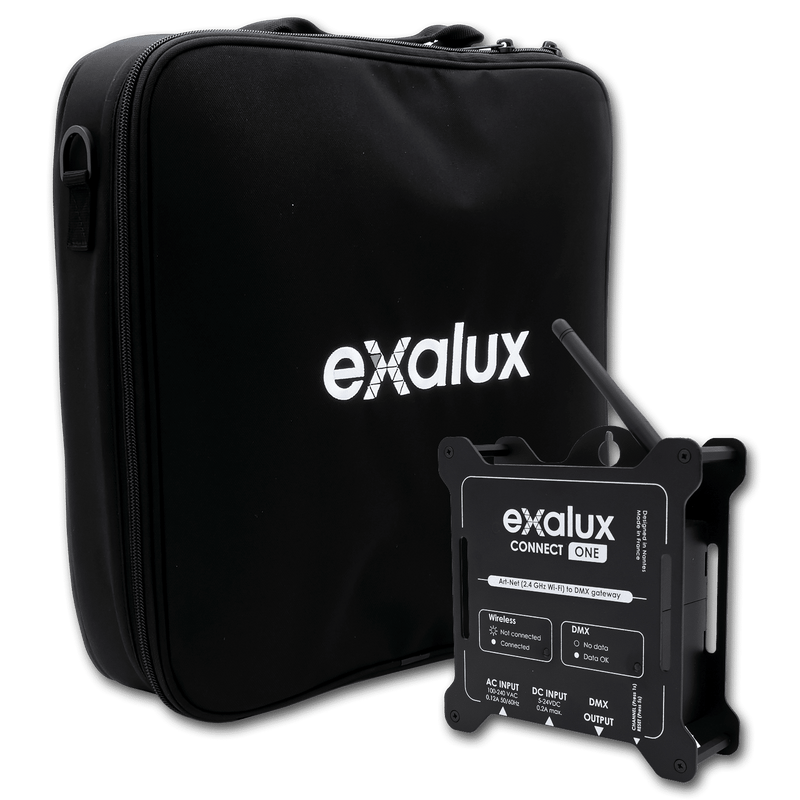

INCLUDED IN THE STARTER KIT

BENEFITS OF THE CONNECT ONE STARTR KIT

Designed for the field

CONNECT ONE has been designed in partnership with the most demanding French gaffers with the goals of simplicity, ruggedness and reliability.

EXALUX™CONNECT ONEhas been on the market for over 4 years and is now a reference for many gaffers.

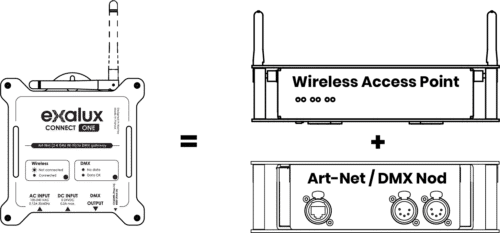

All-in-one box, less cable

EXALUX™CONNECT ONE features its own Wi-Fi interface and Art-Net/DMX nod, so it works without the need of an extra access point.

Switch on, connect, control

With CONNECT ONE, it’s easy as 1-2-3. Our turnkey solution is designed to save you time.

To help you get started with wireless DMX without wasting time, EXALUX™offer a free App that can be downloaded from the Apple Store or Android Store.

Multiple power modes

CONNECT ONE is perfectly suitable for usage in the broadcast studio (AC powered), or on the field (battery powered) thanks to its wide range power mode.

Switching from one power supply to another does not disconnect the Wi-Fi connection.
