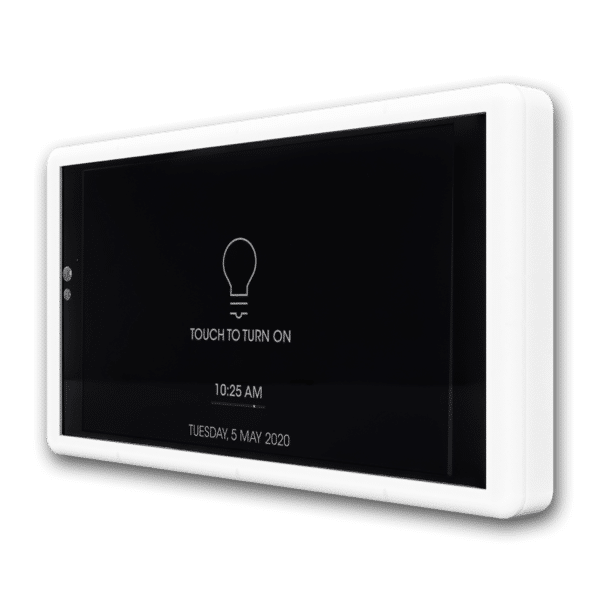

CONTROL HMI5'' UNIT

EXALUX™ CONTROL HMI 5’’ offers a multi-apps interface in a compact and versatile solution. HMI5’’ control panel is designed to be mounted directly onto a panel or wall, or any flat drillable surface.

Thanks to the new EXALUX X-LINK connection, only one cable is needed to power CONTROL HMI 5’’ and communicate with the HUB interface. With its wide supply range (+7 to 30VDC), CONTROL HMI 5’’ can be powered with the CONTROL HUB through the RJ45 connector over a long length of cable.

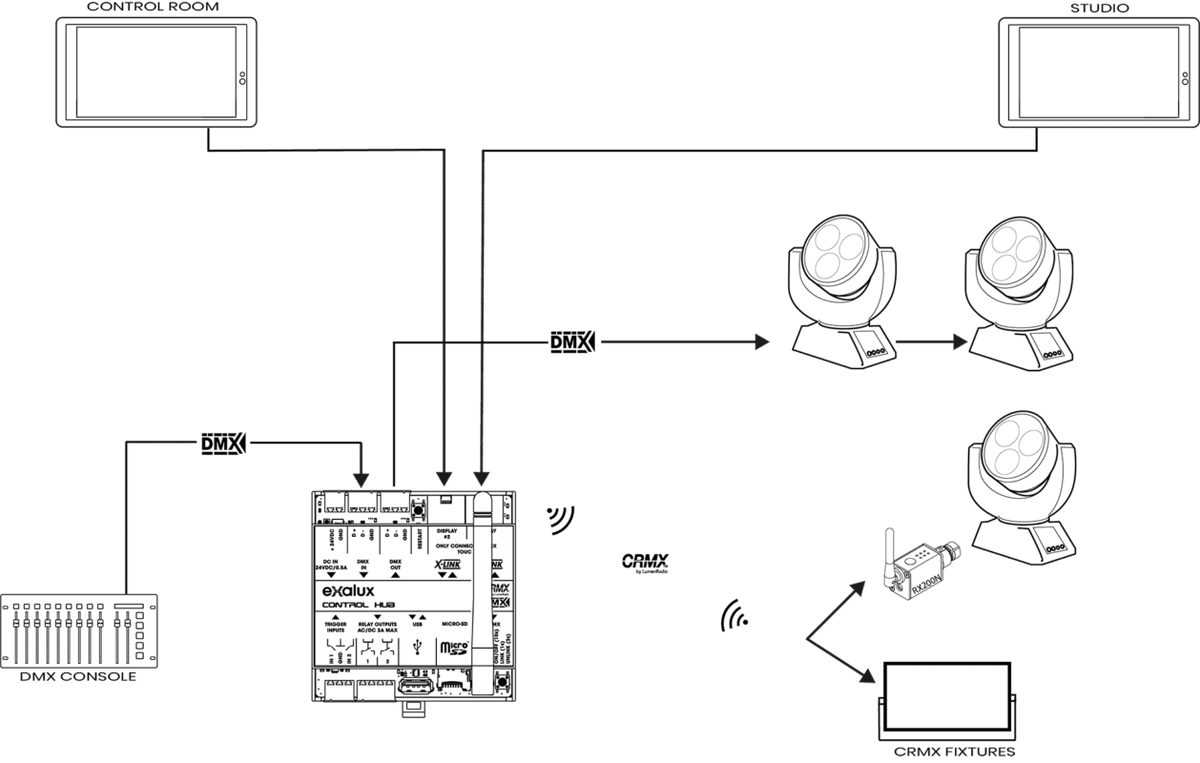

You can connect up to two CONTROL TOUCH HMI to a CONTROL HUB. This makes it possible to install one touch controller in the studio and another in the control room to make live adjustments.

Technical Specifications

Power/Data Connection: RJ45

Display Type: TFT 5.0’’, 480x854, Capacitive Touch

Power Consumption: 2,1W (@24VDC)

Housing / Mounting: ABS PC / Wall or Panel mountable

IP Rating: IP4X

Certifications: CE, RoHS

Weight: 130g

RADIO INTERFACE

Standard/technology: CRMX by LumenRadio™

Frequency: 2,402 ~ 2,480 GHz

Antenna connector: Internal, chip on PCB

RF output: 20 dBm (100mW)

RF modulation: GFSK

Range: Up to 50m

DMX INTERFACE

Protocol: DMX512-A

Universe support: 1

DMX frame rate: 0,8-7352 Hz

End to end latency: < 5ms

DMX Output: Neutrik XLR 5 pin female

OPERATING CONDITIONS

Input Voltage: Min: 7,0 | Typ: 12,0 | Max: 3.0

Storage T°: Min: -30°C | Max: +80°C

Operating T°: Min: -20°C | Typ : 25°C | Max: +70°C

BENEFITS OF THE EXALUX™ CONNECT RX100S

TOUCH SWITCH ON.

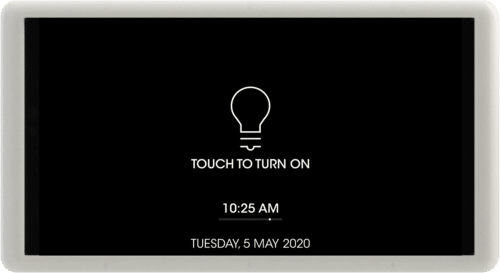

In the «OFF» mode, the display acts as a switch.
Touch the screen with your fingertips to turn on the light!

DO MORE, WITH LESS

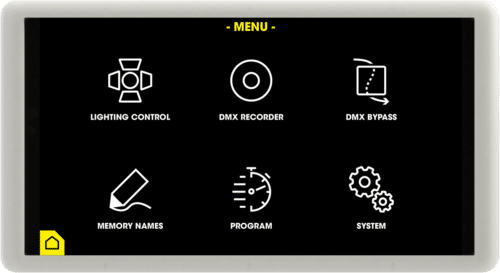

TOUCH 5 HMI combines efficient tools in an elegant and user-friendly user interface.

ALL SETTINGS, AT YOUR FINGERTIPS

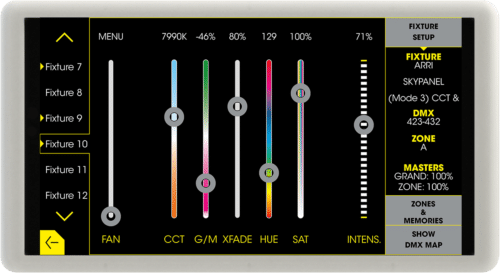

Color, intensity, effects are adjustable on the virtual sliders displayed on the screen. The content of the screen is adapted to the lighting fixture.

Need to run longer? Use a bigger battery!

YOUR SETTINGS CAN BE ACCESSED, WITH ONE TOUCH OF THE DISPLAY

Save your settings into the 8 available memories and reload them with a single touch of the screen.

TIMER PROGRAMMING, CONTROL TOUCH DOES IT TOO!

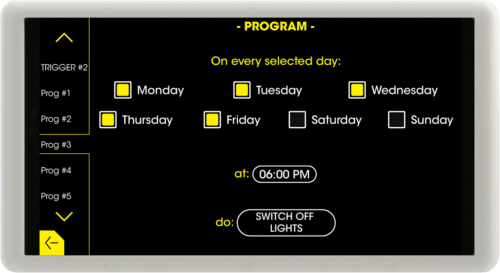

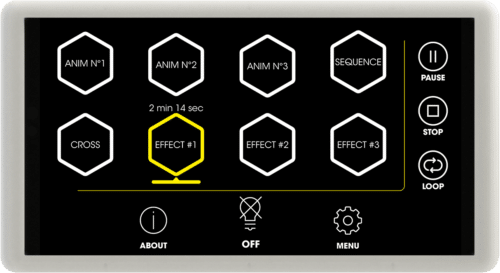

With CONTROL TOUCH, you can switch your lighting fixtures on or off automatically using the scheduler. You can simply switch on or off, but also call up memories or sequences. This is practical, for example for maintenance personnel or periodic events. It is also possible to trigger power relays to switch on appliances from the mains.

SWITCHES ARE WELCOME, WITH TRIGGER

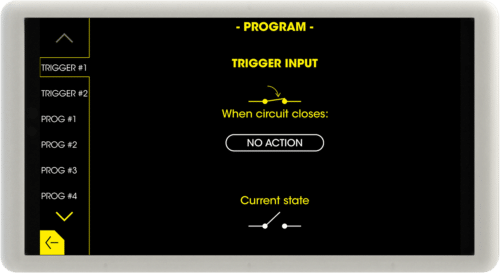

With CONTROL TOUCH, you can switch your lighting fixtures on or off automatically when an event is detected such as pushing a wall switch.

You can simply switch on or off, but also call up memories or sequences. It is also possible to trigger power relays to switch on appliances from the mains.

EXPERT MODE, TO AVOID MISHAPS

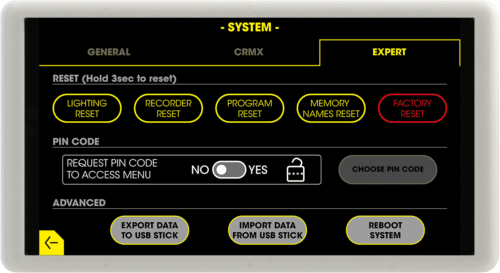

The HMI of the CONTROL TOUCH can be locked with a Pin code in order to avoid operating errors. This also makes it possible to lock the light settings in a simple and efficient way.
