EXATILE PIXEL

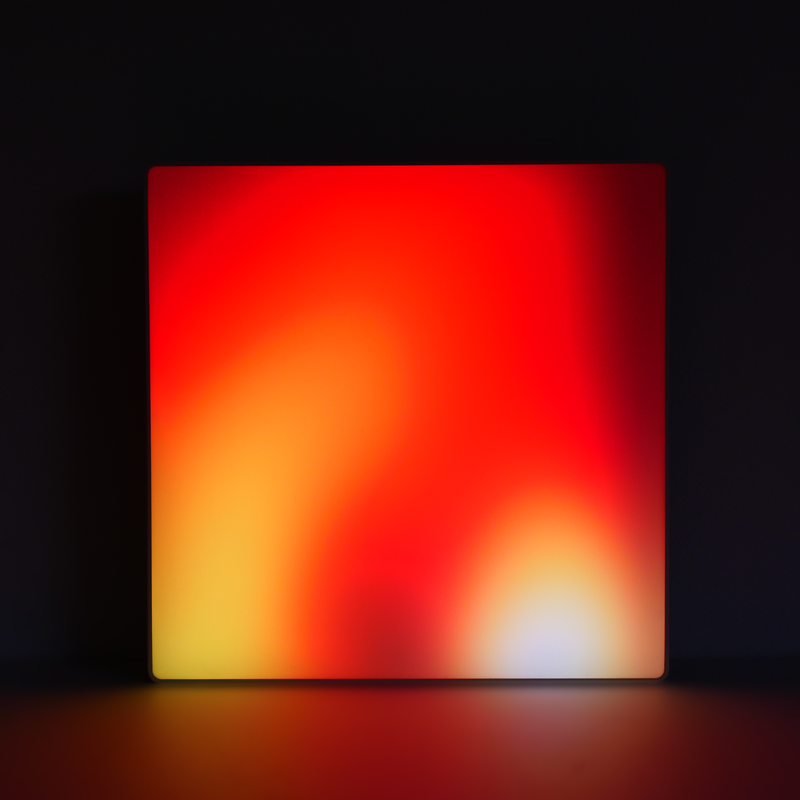

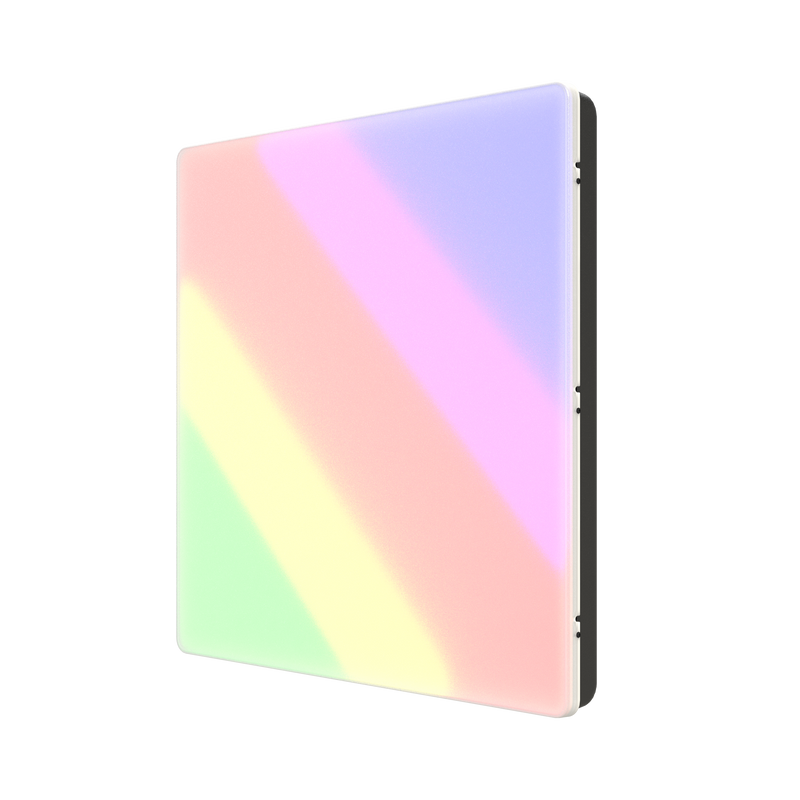

EXALUX™ EXATILE PIXEL is a fusion of a video tile and lighting fixture featuring a fully pixelated 32×32 RGBW LED matrix.
You will now be able to achieve amazing lighting effects which have never been done before.

EXATILE PIXEL, in a short:

• 1024 pixels LED tile,

• ExaChrome LED Engine (RGBW 3000K),

• CCT from 1800K to 10 000K (Ra :95 min),

• Control Modes: CCT+G/M, X/Y, HSI, RGB, Pixel,

• Pixel Modes: P1 (32×32), P4 (16×16), P16 (8×8), P64 (4×4)

•DMX/RDM + Wireless DMX (LumenRadio CRMX™),

• Art-Net, sACN,

• V-Mount battery powered (14,4-26VDC),

• 100-240VAC input,

• 110W Power Draw,

• IPX4.

Technical Specifications

LED Engine

CCT: 1 800 > 10 000K

CRI (Ra): 95

Beam: 120°

Efficacy: -

Illuminance: - (@1m)

Dimming range: 0 > 100%

Supported Protocols: DMX, Wireless (LumenRadio CRMX™) Art-Net 4 sACN

Control Modes: Manual (knob / switches)Remote (DMX / Ethernet / BLE / CRMX)

User Interface: Colour TFT display, LED indicators, Backlit buttons

Power Consumption: 110W Max

IP Rating: IPX4

Certifications: CE, RoHS

Weight: 6Kg

OPERATING CONDITIONS

AC Input voltage: 100-240VAC

Storage T° Min: -30°C | Typ: 25°C | Max: +70°C

Operating T° Min: -20°C | Typ: 25°C | Max: +50°C

===================

ETHERNET INTERFACE

Standard: IEEE 802.3 10/100 Mbps

Ports: Neutrik EtherCON

USB INTERFACE

Standard: USB 2.0 Hi-Speed

Ports: USB-A Host

POWER

V-Lock: 14.4-14.8VDC~26VDC

AC Input: 100-240VAC

RADIO INTERFACE

Standard/technology: CRMX, CRMX², W-DMX G3/G4s

Frequency: 2.402 ~ 2.480 GHz

Antenna: Omnidirectional, 2.4GHZ, 1.6dBi, SMA

Rx Sensitivity: -93 dBm

RF modulation: GFSK

Range: Up to 500m

DMX INTERFACE

Protocol: DMX512-A

Universe support: 1

DMX frame rate: 0,8-830Hz

End to end latency: < 5ms

DMX Input: Neutrik XLR 5 pins male (1) / PoD Compliant

DMX Output: Neutrik XLR 5 pins Female (1) / PoD Compliant

With EXATILE PIXEL, EXALUX introduces a new generation of multi-purpose LED tile to the film, broadcast, event and architectural markets.

EXATILE PRODUCT FEATURES

NEW USER INTERFACETHAT MAKES SENS

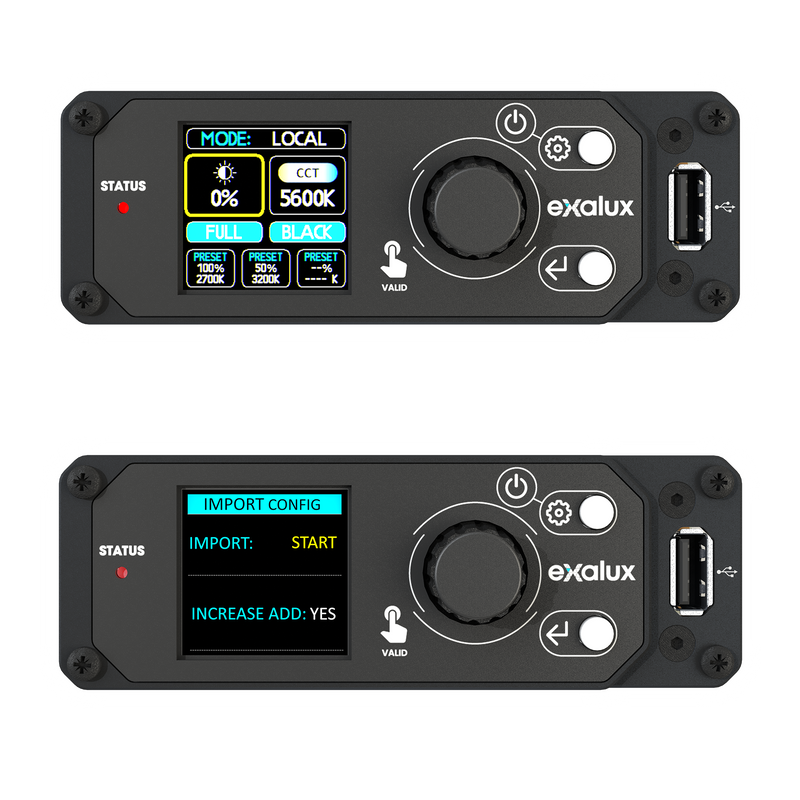

The new user interface makes it easy to access the main settings: 2 switches and 1 knob. Nothing could be simpler to set up your EXATILE!

CCT, COLOR, PIXEL, FXLIGHT, AUGMENTED

Genuine versatile lighting equipment, EXATILE PIXEL not only makes it possible to create amazing effects but also lights the most demanding actors with softness and quality.

Let’s go and see : https://youtu.be/X9_B4jfhJ5s

MADRIX COMPLIANT LIGHT GOES CRAZY

Create your own animations with MADRIX and play them on one or more of your EXATILE.
