CONNECT RX200N-REVERSE BASIC KIT

EXALUX™ CONNECT RX200N-RP is an ultra-compact wireless RDM/DMX receiver. The unit is RDM and DMX compliant, making it ready for the DMX of the future.

The XLR connector is inverted upside down by 180° compared to the standard version, which allows a more convenient mounting on Skypanel fixtures for example.

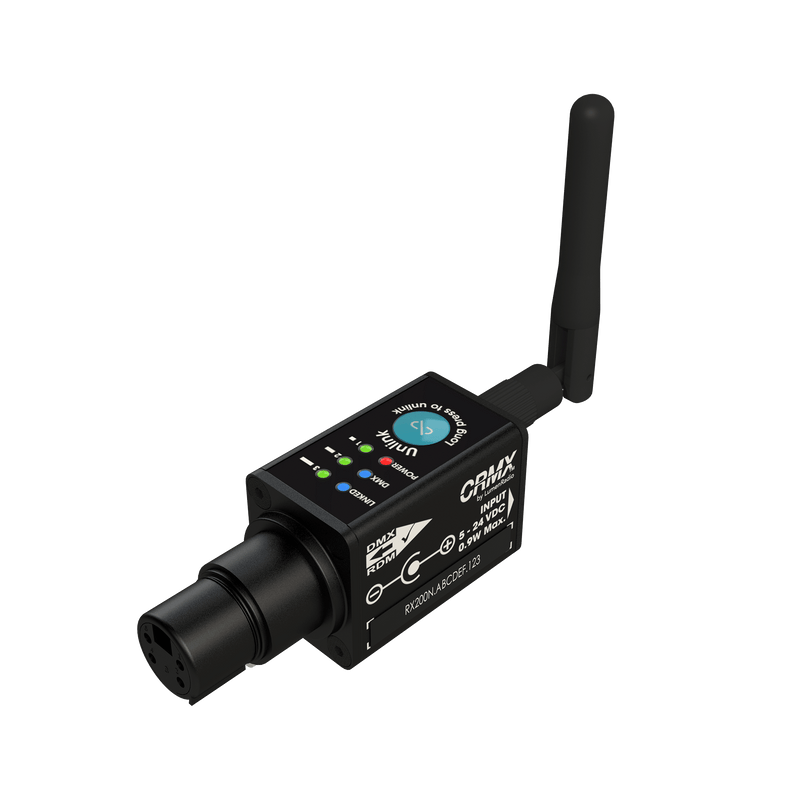

CONNECT RX200N-RP

• Built-in LumenRadio CRMX™ receiver

• DMX universe

• RDM compliant

• Wide range DC power mode

• Aluminum unibody enclosures

• Neutrik™ XLR connectors, industry standard compliant.

Technical Specifications

Power Connection: 2.0x5.5MM DC jack

Interface: Unlink (switch), Power, Paired, DMX, Signal level (LED)

Power Consumption: <0.9W

Housing / Mounting: Aluminum

IP Rating: IP30

Certifications: CE, RoHS

Weight: 80g

OPERATING CONDITIONS

Input Voltage: Min: 4.5VDC | Typ: 5VDC | Max: 26VDC

Storage T°: Min: -20°C | Typ : 25°C | Max: +75°C

Operating T°: Min: -10°C | Typ : 25°C | Max: +55°C

RADIO INTERFACE

Standard/Technology: LumenRadio CRMX™

Frequency: 2.402 ~ 2.480 GHz

Antenna: Omnidirectional, 2.4GHZ 2.0dBi, SMA

Receiver Sensitivity: -93 dBm

RF Output: 20 dBm (100mW)

RF Modulation: GFSK

Range: Up to 300m (depending on the transmitter and the environment)

DMX INTERFACE

Protocol: DMX512-A / RDM ANSI E1.20

Universe support: 1

DMX frame rate: 0,8-830Hz

End to end latency: < 5ms

DMX Output: Neutrik XLR 5 pins male

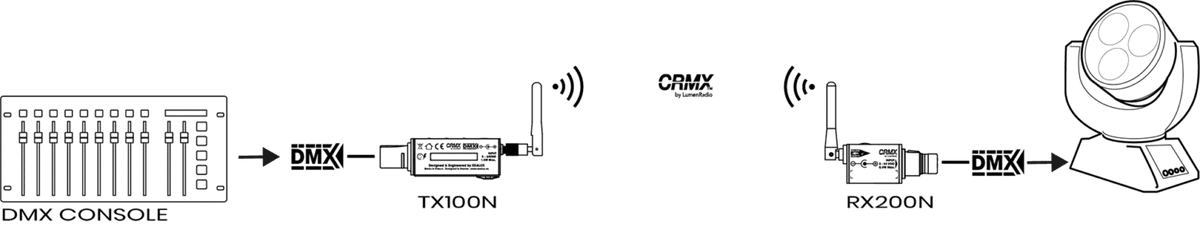

EXALUX™ CONNECT RX200N-RP CRMX receiver works perfectly with the EXALUX™ CONNECT CRMX family such as CONNECT TX100N.

PRODUCT BENEFITS

Specially designed for the SkyPanel

CONNECT RX200N-RP is the ideal companion for the SkyPanel. The XLR connector and antenna are reversed by 180° compared to the standard version. The transmitter can be powered through the nearby USB port.

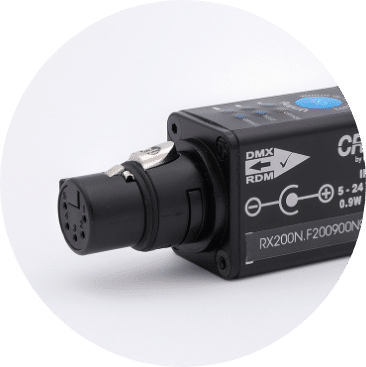

Smaller & Stronger

RX200N features a one-piece housing made from a block of aluminum, allowing it to get a compact and stronger design.
The external antenna allows a long range (up to 500m depending on the transmitter and the environment).

DMX & RDM Compliant

CONNECT RX200N is DMX512 and RDM compliant. It means that it will allow configuration, status monitoring, and management of RDM devices.

More about RDM :
https://www.rdmprotocol.org/rdm/what-is-rdm/

Wide Range Power Mode

Thanks to its wide supply range (+5 to 26VDC), CONNECT RX200N can be powered through the USB connector of a DMX fixture, a Vlock battery through the D-TAP connector or any external PSU.

Removable Antenna

The connect RX200N‘S antenna is removable, meaning you can replace it by a different model to better suit your needs.

LumenRadio CRMX™

Based on LumenRadio CRMX™ technology, EXALUX™ CONNECT RX200N brings DMX fidelity without any latency.
