EXALUX™ CONNECT TX100N

EXALUX™ CONNECT TX100N is an ultra-compact wireless DMX transmitter that can be used in the studios or on location.

CONNECT TX100N, in short:

• Built-in LumenRadio CRMX™ transmitter

• 1 DMX universe

• Wide range DC power mode

• PoD (Power Over DMX) compliant

• Aluminum unibody enclosures

• Neutrik™ XLR connectors, industry standard compliant.

CONNECT TX100N features PoD technology which enables the unit to be powered via its XLR connector. The unit is fully compliant with all LumenRadio CRMX™ receivers, such as RX100S and RX200N

Technical Specifications

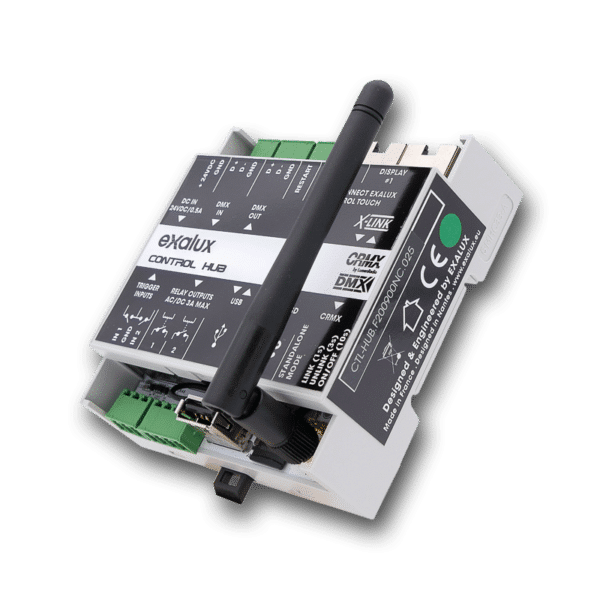

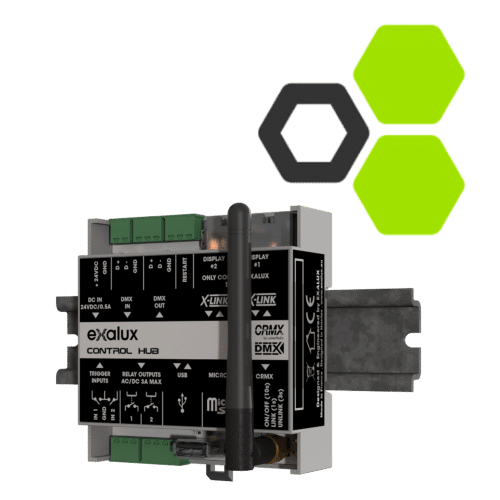

CONTROL HUB

Power Consumption: 1.5W

Input Voltage: Min: 22.0VDC | Typ: 24.0 VDC | Max: 26.0VDC

Housing / Mounting: ABS-PC / DIN RAIL

IP Rating: IP30

Certifications: CE, RoHS

Weight: 125g

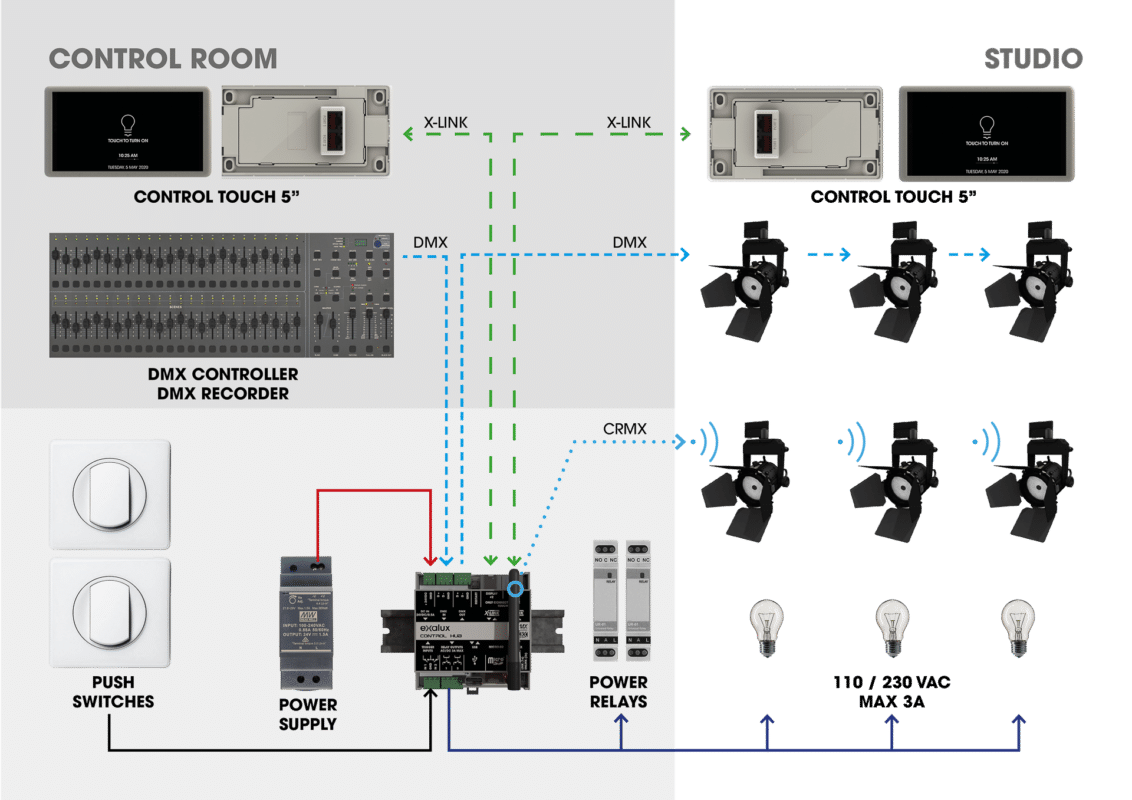

The CONTROL HUB is the link between touch controllers and DMX lighting fixtures. It powers the CONTROL TOUCH HMI and handles DMX commands. The CONTROL HUB sends DMX frames to the lighting fixtures using a wired or wireless connection.

PRODUCT BENEFITS

Wireless Makes it Easier!

Based on LumenRadio CMRX™ technology, CONTROL HUB wireless DMX transmitter brings DMX fidelity without any latency.

Wireless DMX will help you saving time during installation and more flexibility in operation.
